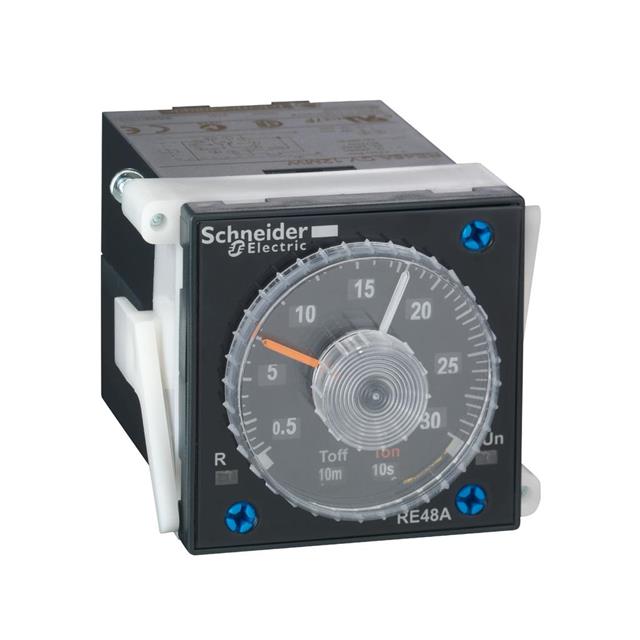

RE48ACV12MW

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIMING RELAY, DPDT, 0.02S-300HOUR, 240V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIMING RELAY, DPDT, 0.02S-300HOUR, 240V

Technical Specifications

Parameters and characteristics for this part

Part	Delay Time [Min]	Delay Time [Max]	Termination Style	Relay Type	Timing Initiate Method	Contact Rating @ Voltage	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Adjustment Method	Circuit
SQUARE D BY SCHNEIDER ELECTRIC RE48AML12MW	0.02 Sec	300 Hrs	Plug In	Mechanical Relay	Input Voltage	5 A 250 VAC	Programmable (Multi-Function)	24 VAC	240 VAC	Hand Dial	DPDT (2 Form C)
SQUARE D BY SCHNEIDER ELECTRIC RE48ACV12MW	0.02 Sec	300 Hrs	Plug In	Mechanical Relay	Input Voltage	5 A 250 VAC	Repeat Cycle Twin Timer	24 VAC	240 VAC	Hand Dial	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Repeat Cycle, Twin Timer Time Delay Relay DPDT (2 Form C) 0.02 Sec ~ 300 Hrs Delay 5A @ 250VAC/DC Panel Mount
