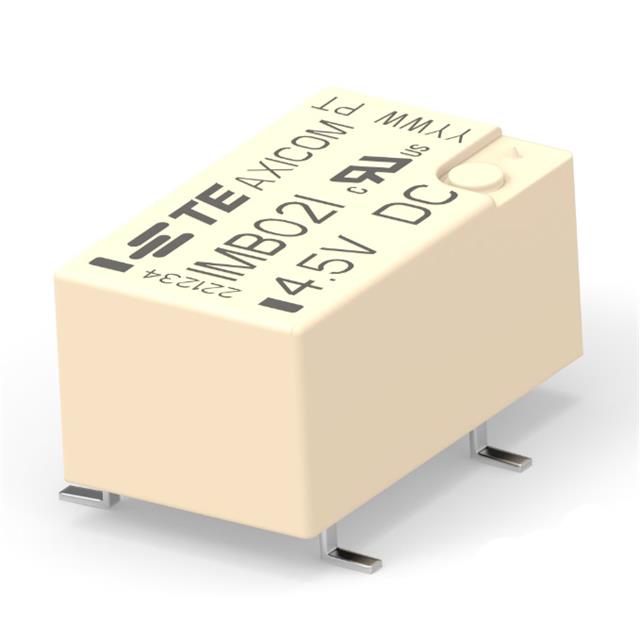

IMB02IGR

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM SPST 2A 4.5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMB02IGR

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM SPST 2A 4.5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMB02IGR

Coil Current	31 mA
Coil Resistance	145 Ohms
Coil Type	Non Latching
Coil Voltage	4.5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Surface Mount
Must Operate Voltage	3.38 VDC
Must Release Voltage	0.45 VDC
Operate Time	3 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	3 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	400 VDC
Termination Style	Gull Wing

1462041 Series

Part	Contact Rating (Current)	Operate Time	Release Time	Seal Rating	Coil Type	Coil Voltage	Termination Style	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Contact Form	Mounting Type	Switching Voltage	Load - Max Switching	Must Operate Voltage	Must Release Voltage	Coil Current	Coil Resistance
TE Connectivity Potter & Brumfield Relays 1-1462041-4	2 A	3 ms	3 ms	Sealed - Hermetically	Non Latching	24 VDC	PC Pin	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	Telecom	SPST-NO (1 Form A)	Through Hole	220 VDC 250 VAC	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 1462041-3	2 A	3 ms	3 ms	Sealed - Hermetically	Non Latching	12 VDC	Gull Wing	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	Telecom	SPST-NO (1 Form A)	Surface Mount	220 VDC 250 VAC	440 W 500 VA	9 VDC	1.2 VDC	11.7 mA	1030 Ohms
TE Connectivity Potter & Brumfield Relays 1462041-6	2 A	3 ms	3 ms	Sealed - Hermetically	Non Latching	12 VDC	PC Pin	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	Telecom	SPST-NO (1 Form A)	Through Hole	220 VDC 250 VAC	440 W 500 VA	9 VDC	1.2 VDC	11.7 mA	1030 Ohms
TE Connectivity Potter & Brumfield Relays 1462041-5	2 A	3 ms	3 ms	Sealed - Hermetically	Non Latching	4.5 VDC	PC Pin	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	Telecom	SPST-NO (1 Form A)	Through Hole	220 VDC 250 VAC	440 W 500 VA	3.38 VDC	0.45 VDC	31.1 mA	145 Ohms
TE Connectivity Potter & Brumfield Relays IMB02IGR	2 A	3 ms	3 ms	Sealed - Hermetically	Non Latching	4.5 VDC	Gull Wing	Gold (Au) Silver Nickel (AgNi)	85 °C	-40 °C	Telecom	SPST-NO (1 Form A)	Surface Mount	400 VDC	440 W 500 VA	3.38 VDC	0.45 VDC	31 mA	145 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.03
		10	$ 6.26
		25	$ 5.98
		50	$ 5.77
		100	$ 5.58
		250	$ 5.32
		500	$ 5.14
	Digi-Reel®	1	$ 7.03
		10	$ 6.26
		25	$ 5.98
		50	$ 5.77
		100	$ 5.58
		250	$ 5.32
		500	$ 5.14
	Tape & Reel (TR)	1000	$ 4.22
		2000	$ 4.07

Description

General part information

1462041 Series

Telecom Relay SPST-NO (1 Form A) Surface Mount
