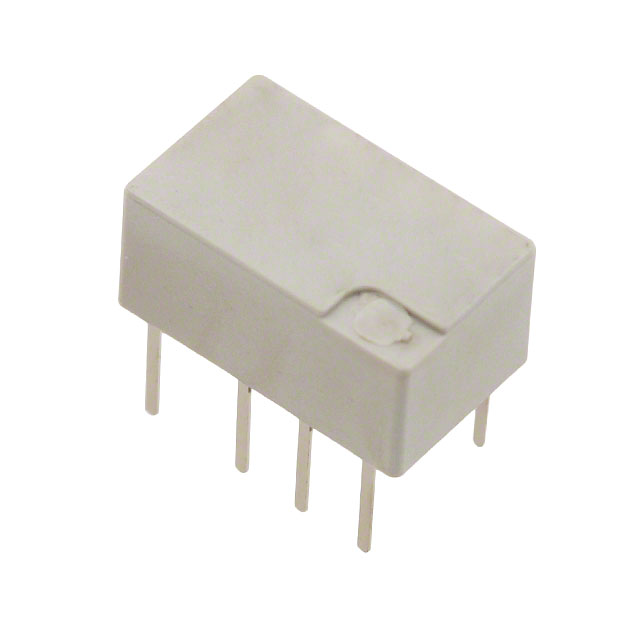

1462041-6
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM SPST 2A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1462041-6
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM SPST 2A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1462041-6 |
|---|---|
| Coil Current | 11.7 mA |
| Coil Resistance | 1030 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Palladium (Pd), Gold (Au), Ruthenium (Ru) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | Telecom |
| Release Time | 3 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.21 | |
| 10 | $ 4.55 | |||
| 25 | $ 4.31 | |||
| 50 | $ 4.14 | |||
| 100 | $ 3.97 | |||
| 250 | $ 3.76 | |||
| 500 | $ 3.61 | |||
| 1000 | $ 3.47 | |||
Description
General part information
1462041 Series
Telecom Relay SPST-NO (1 Form A) Through Hole
