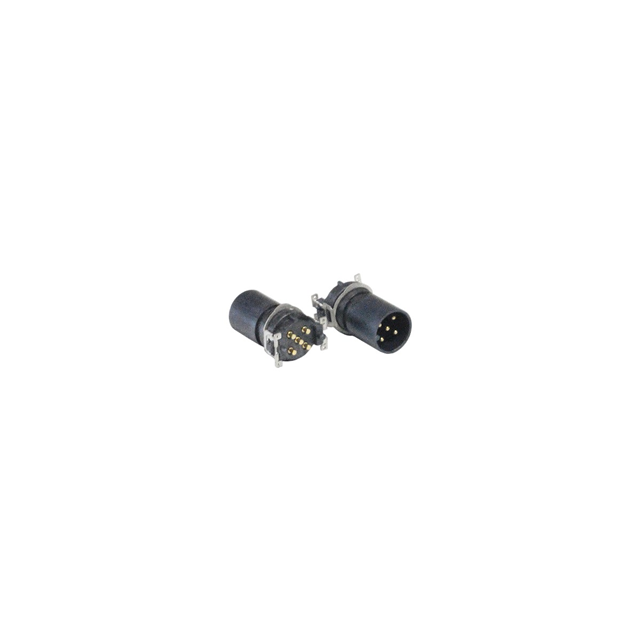

PXPLCP12SMM08APC

Active

BULGIN LIMITED

SENSOR CONN, MALE, 8POS, M12, SMT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BULGIN LIMITED

SENSOR CONN, MALE, 8POS, M12, SMT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PXPLCP12SMM08APC

Applications	Medical, Industrial, Instrumentation
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Solder
Voltage Rating	30 VDC

Part	Shielding	Applications	Contact Finish - Mating	Termination	Mounting Type	Shell Size - Insert	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating	Primary Material	Orientation	Current Rating (Amps)	Number of Positions	Shell Material
BULGIN LIMITED PXPLCP12SMF08XPC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-8	Female Sockets Plug	Phosphor Bronze	-25 °C	80 C	IP67 - Dust Tight Waterproof	30 VDC	Plastic	X	2 A	8	Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM04APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-4	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	250 VDC	Plastic	A	4 A	4	Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM05APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-5	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	60 VDC	Plastic	A	4 A		Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM08APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-8	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	30 VDC	Plastic	A	2 A	8	Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM12APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-12	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	60 VDC	Plastic	A	1.5 A	12	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Solder
