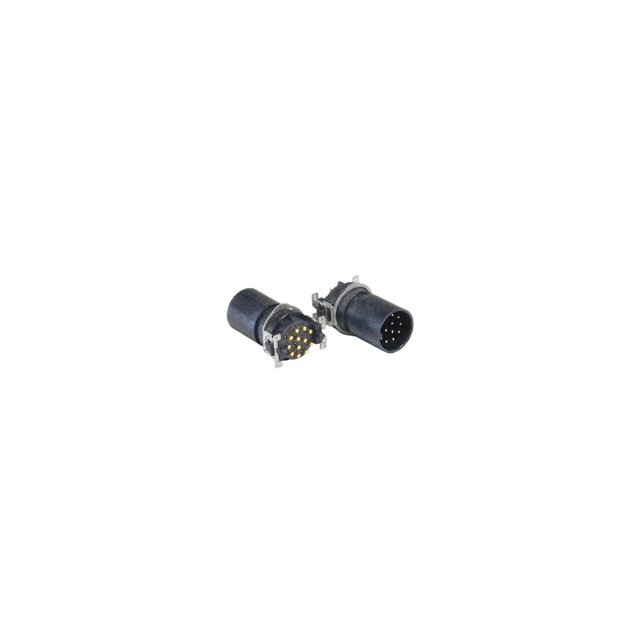

PXPLCP12SMM12APC

Active

BULGIN LIMITED

SENSOR CONNECTOR, PXP SERIES, M12, MALE, 12 POSITIONS, PCB PIN, STRAIGHT SURFACE MOUNT

Search across all available documentation for this part.

Active

BULGIN LIMITED

SENSOR CONNECTOR, PXP SERIES, M12, MALE, 12 POSITIONS, PCB PIN, STRAIGHT SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	PXPLCP12SMM12APC

Applications	Medical, Industrial, Instrumentation
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shell Size - Insert	M12-12
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 VDC

Part	Shielding	Applications	Contact Finish - Mating	Termination	Mounting Type	Shell Size - Insert	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating	Primary Material	Orientation	Current Rating (Amps)	Number of Positions	Shell Material
BULGIN LIMITED PXPLCP12SMF08XPC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-8	Female Sockets Plug	Phosphor Bronze	-25 °C	80 C	IP67 - Dust Tight Waterproof	30 VDC	Plastic	X	2 A	8	Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM04APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-4	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	250 VDC	Plastic	A	4 A	4	Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM05APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-5	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	60 VDC	Plastic	A	4 A		Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM08APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-8	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	30 VDC	Plastic	A	2 A	8	Liquid Crystal Polymer (LCP)
BULGIN LIMITED PXPLCP12SMM12APC	Unshielded	Industrial Instrumentation Medical	Gold	Solder	Surface Mount Right Angle	M12-12	Male Pins Receptacle	Brass	-25 °C	80 C	IP67 - Dust Tight Waterproof	60 VDC	Plastic	A	1.5 A	12	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Solder
