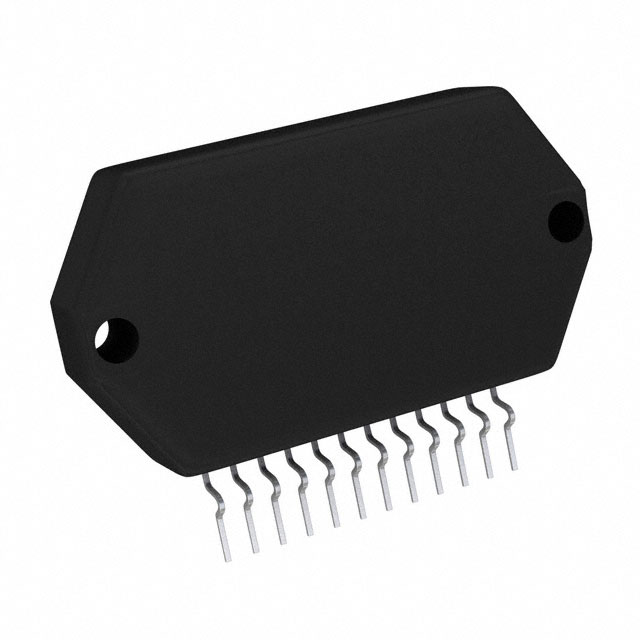

STK404-120N-E

Obsolete

ON Semiconductor

AUDIO AMP SPEAKER 1-CH MONO 120W CLASS-AB 12-PIN SIP BOX

Search across all available documentation for this part.

Obsolete

ON Semiconductor

AUDIO AMP SPEAKER 1-CH MONO 120W CLASS-AB 12-PIN SIP BOX

Technical Specifications

Parameters and characteristics for this part

Specification	STK404-120N-E

Features	Mute, Standby, Short-Circuit Protection
Max Output Power x Channels @ Load	120 W
Max Output Power x Channels @ Load [x]	1, 6 Ohm
Mounting Type	Through Hole
Output Type	1-Channel (Mono)
Package / Case	12-SIP Formed Leads
Supplier Device Package	12-SIP
Type	Class AB
Voltage - Supply [Max]	65 V
Voltage - Supply [Min]	0 V

Part	Output Type	Board Type	Amplifier Type	Supplied Contents	Voltage - Supply	Utilized IC / Part	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Type	Package / Case	Supplier Device Package	Mounting Type	Features	Voltage - Supply [Max]	Voltage - Supply [Min]
ON Semiconductor STK404-070NGEVB	1-Channel (Mono)	Fully Populated	Class AB	Board(s)	30 V	STK404-070N-E	1	60 W
ON Semiconductor STK404-070YN-E	1-Channel (Mono)						1	60 W	Class AB	10-SIP	10-SIP	Through Hole
ON Semiconductor STK404-120N-E	1-Channel (Mono)						1 6 Ohm	120 W	Class AB	12-SIP Formed Leads	12-SIP	Through Hole	Mute Short-Circuit Protection Standby	65 V	0 V
ON Semiconductor STK404-140N-E	1-Channel (Mono)							1 180 W	Class AB	13-SIP Formed Leads		Through Hole	Mute Short-Circuit Protection Standby	78 V	0 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class AB 12-SIP

Technical documentation and resources

No documents available
