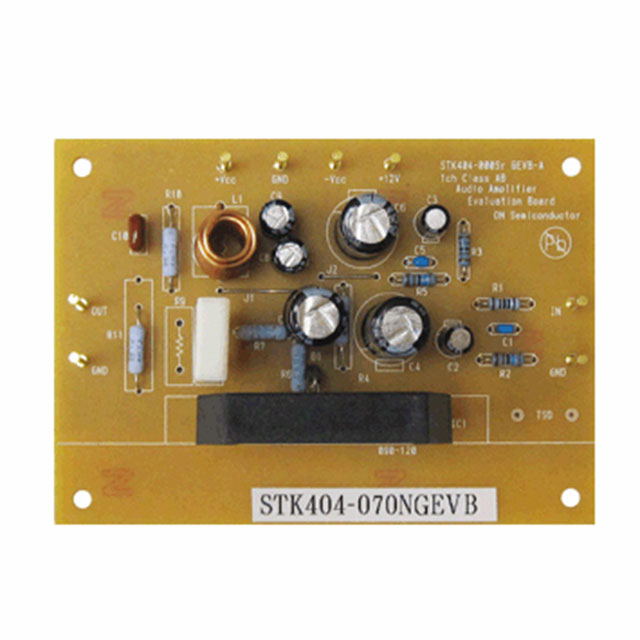

STK404-070NGEVB

Active

ON Semiconductor

EVAL BOARD STK404-070NG

Search across all available documentation for this part.

Active

ON Semiconductor

EVAL BOARD STK404-070NG

Technical Specifications

Parameters and characteristics for this part

Specification	STK404-070NGEVB

Amplifier Type	Class AB
Board Type	Fully Populated
Max Output Power x Channels @ Load	60 W
Max Output Power x Channels @ Load [x]	1
Output Type	1-Channel (Mono)
Supplied Contents	Board(s)
Utilized IC / Part	STK404-070N-E
Voltage - Supply	30 V

Part	Output Type	Board Type	Amplifier Type	Supplied Contents	Voltage - Supply	Utilized IC / Part	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Type	Package / Case	Supplier Device Package	Mounting Type	Features	Voltage - Supply [Max]	Voltage - Supply [Min]
ON Semiconductor STK404-070NGEVB	1-Channel (Mono)	Fully Populated	Class AB	Board(s)	30 V	STK404-070N-E	1	60 W
ON Semiconductor STK404-070YN-E	1-Channel (Mono)						1	60 W	Class AB	10-SIP	10-SIP	Through Hole
ON Semiconductor STK404-120N-E	1-Channel (Mono)						1 6 Ohm	120 W	Class AB	12-SIP Formed Leads	12-SIP	Through Hole	Mute Short-Circuit Protection Standby	65 V	0 V
ON Semiconductor STK404-140N-E	1-Channel (Mono)							1 180 W	Class AB	13-SIP Formed Leads		Through Hole	Mute Short-Circuit Protection Standby	78 V	0 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

STK404-070N-E - 1-Channel (Mono) Output Class AB Audio Amplifier Evaluation Board
