BKT-111-03-F-V

Active

Samtec Inc.

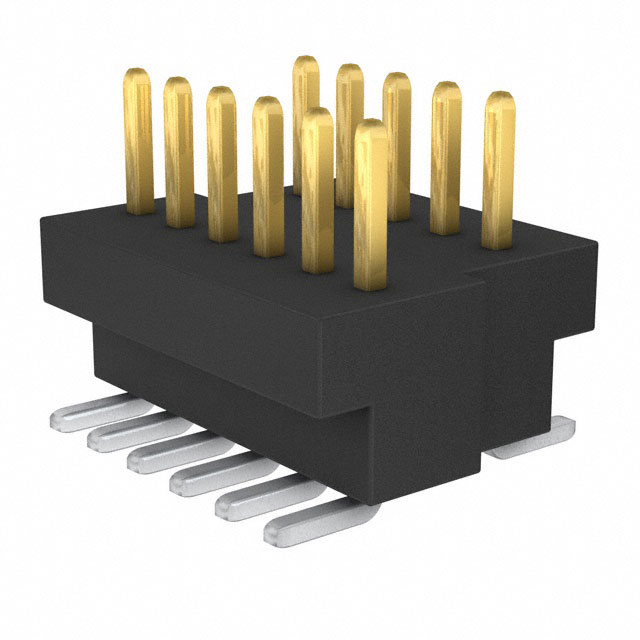

CONN UNSHROUDED HEADER HDR 11 POS 1MM SOLDER ST SMD TIGER CLAW™ TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BKT-111-03-F-V

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 11 POS 1MM SOLDER ST SMD TIGER CLAW™ TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BKT-111-03-F-V

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BKT-111 Series

Part	Insulation Color	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Type	Shrouding	Contact Finish - Post	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Material	Termination	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Mated Stacking Heights	Mated Stacking Heights [z]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. BKT-111-05-L-V	Black	2.8 A per Contact	Surface Mount	-55 °C	125 °C	0.039 in	1 mm	All	Male Pin	Unshrouded	Tin	Push-Pull	0.065 in	1.65 mm	Gold	Phosphor Bronze	Solder	Square	11	0.177 in	4.5 mm	2	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Header	7 mm
Samtec Inc. BKT-111-04-L-V-TR	Black	2.8 A per Contact	Surface Mount	-55 °C	125 °C	0.039 in	1 mm	All	Male Pin	Unshrouded	Tin	Push-Pull	0.065 in	1.65 mm	Gold	Phosphor Bronze	Solder	Square	11	0.137 in	3.47 mm	2	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Header	6 mm
Samtec Inc. BKT-111-01-F-V	Black	2.8 A per Contact	Surface Mount	-55 °C	125 °C	0.039 in	1 mm	All	Male Pin	Unshrouded	Tin	Push-Pull	0.065 in	1.65 mm	Gold	Phosphor Bronze	Solder	Square	11	0.064 in	1.63 mm	2	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	UL94 V-0	Header		4.14 mm
Samtec Inc. BKT-111-03-F-V	Black	2.8 A per Contact	Surface Mount	-55 °C	125 °C	0.039 in	1 mm	All	Male Pin	Unshrouded	Tin	Push-Pull	0.065 in	1.65 mm	Gold	Phosphor Bronze	Solder	Square	11			2	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	UL94 V-0	Header	5 mm		0.098 in	2.5 mm
Samtec Inc. BKT-111-02-L-V	Black	2.8 A per Contact	Surface Mount	-55 °C	125 °C	0.039 in	1 mm	All	Male Pin	Unshrouded	Tin	Push-Pull	0.065 in	1.65 mm	Gold	Phosphor Bronze	Solder	Square	11	0.064 in	1.63 mm	2	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Header
Samtec Inc. BKT-111-04-F-V	Black	2.8 A per Contact	Surface Mount	-55 °C	125 °C	0.039 in	1 mm	All	Male Pin	Unshrouded	Tin	Push-Pull	0.065 in	1.65 mm	Gold	Phosphor Bronze	Solder	Square	11	0.137 in	3.47 mm	2	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	UL94 V-0	Header	6 mm
Samtec Inc. BKT-111-04-L-V	Black	2.8 A per Contact	Surface Mount	-55 °C	125 °C	0.039 in	1 mm	All	Male Pin	Unshrouded	Tin	Push-Pull	0.065 in	1.65 mm	Gold	Phosphor Bronze	Solder	Square	11	0.137 in	3.47 mm	2	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Header	6 mm
