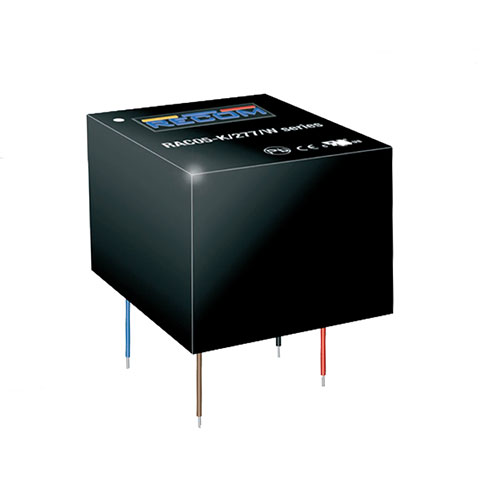

RAC05-12SK/277/W

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 5 W, 12 V, 416 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Operating Instructions EN +1

RAC05-12SK/277/W

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 5 W, 12 V, 416 MA

Deep-Dive with AI

DocumentsDatasheet Operating Instructions EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC05-12SK/277/W

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	416 mA
Efficiency	83 %
Features	Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	5 W
Size / Dimension [x]	31.7 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	26.7 mm
Size / Dimension [y]	1.05 in
Size / Dimension [z]	21.8 mm
Size / Dimension [z]	0.86 in
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

RAC05-3.3 Series

AC/DC Power Modules 5W 85-264Vin 15Vout 333mA 1x1in

Part	Package / Case	Load Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Line Regulation	Type	Approval Agency	Weight	Weight	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Applications	Current - Output (Max) [Max]	Mounting Type	Voltage - Output 1	Efficiency	Current - Output (Max)	Voltage - Isolation	Current - Output 1	Package / Case
RECOM Power RAC05-12SK	5-DIP Module	1 %	-25 °C	70 °C	1 in	25.4 mm	0.65 in	25.4 mm	25.4 mm	16.5 mm	Universal Input	0.5 %	Enclosed	CE cURus	0.044 lb	19.96 g	5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)	416 mA	Through Hole	12 V	81 %
RECOM Power RAC05-3.3SK	5-DIP Module	1 %	-25 °C	70 °C	1 in	25.4 mm	0.65 in	25.4 mm	25.4 mm	16.5 mm	Universal Input	0.5 %	Enclosed	CE cURus	0.044 lb	19.96 g	5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)		Through Hole	3.3 V	76 %	1.515 A
RECOM Power RAC05-3.3SK/C14			-25 °C	70 °C	2.17 "	28.5 mm	0.83 in	55.1 mm	1.12 in	21 mm	Universal Input		Enclosed	CB CE cURus FCC			5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)			3.3 V	76 %		3000 V	1.51 A
RECOM Power RAC05-3.3SK/277	9-DIP Module	1 %	-40 °C	85 °C	1.25 "	26.7 mm	0.86 in	31.7 mm	1.05 in	21.8 mm		0.5 %	Enclosed	CE cURus	0.069 lb	31.3 g	5 W	85 VAC 120 VDC	305 VAC 430 VDC	1	Household Appliances ITE (Commercial)	1.51 A	Through Hole	3.3 V	77 %				4 Lead
RECOM Power RAC05-12SK/277/W			-40 °C	85 °C	1.25 "	26.7 mm	0.86 in	31.7 mm	1.05 in	21.8 mm	Universal Input		Enclosed	CB CE cURus			5 W	85 VAC 120 VDC	305 VAC 430 VDC	1	Household Appliances ITE (Commercial)		Chassis Mount	12 V	83 %		3000 V	416 mA
RECOM Power RAC05-12SK/C14			-25 °C	70 °C	2.17 "	28.5 mm	0.83 in	55.1 mm	1.12 in	21 mm	Universal Input		Enclosed	CB CE cURus FCC			5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)			12 V	81 %		3000 V	420 mA
RECOM Power RAC05-24SK	5-DIP Module	1 %	-25 °C	70 °C	1 in	25.4 mm	0.65 in	25.4 mm	25.4 mm	16.5 mm	Universal Input	0.5 %	Enclosed	CE cURus	0.044 lb	19.96 g	5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)	210 mA	Through Hole	24 V	84 %
RECOM Power RAC05-3.3SK/277/W			-40 °C	85 °C	1.25 "	26.7 mm	0.86 in	31.7 mm	1.05 in	21.8 mm	Universal Input		Enclosed	CB CE cURus			5 W	85 VAC 120 VDC	305 VAC 430 VDC	1	Household Appliances ITE (Commercial)		Chassis Mount	3.3 V	77 %		3000 V	1.51 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.37
		5	$ 11.60
		10	$ 11.09
		25	$ 10.60
		50	$ 10.18
		100	$ 9.51
		250	$ 9.29
Newark	Each	10	$ 14.57
		25	$ 13.08
		50	$ 12.26
		100	$ 11.59
		250	$ 10.93
Sager	N/A	1	$ 12.37
		5	$ 11.60
		10	$ 11.09
		25	$ 10.60
		50	$ 10.18
		100	$ 9.51
		250	$ 9.05

Description

General part information

RAC05-3.3 Series

AC/DC Power Modules 5W 85-264Vin 15Vout 333mA 1x1in

Documents

Technical documentation and resources

Datasheet

Operating Instructions EN

Datasheet

Document
