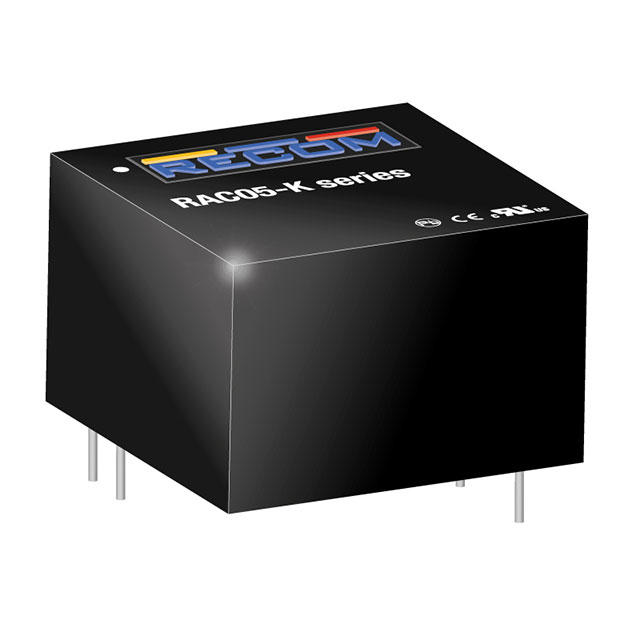

RAC05-3.3SK

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 5 W, 3.3 V, 1.515 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

RAC05-3.3SK

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 5 W, 3.3 V, 1.515 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC05-3.3SK

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max)	1.515 A
Efficiency	76 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	5-DIP Module
Power (Watts)	5 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.65 in
Size / Dimension [z]	16.5 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Output 1	3.3 V
Weight	0.044 lb
Weight	19.96 g

RAC05-3.3 Series

AC/DC Power Modules 5W 85-264Vin 15Vout 333mA 1x1in

Part	Package / Case	Load Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Line Regulation	Type	Approval Agency	Weight	Weight	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Applications	Current - Output (Max) [Max]	Mounting Type	Voltage - Output 1	Efficiency	Current - Output (Max)	Voltage - Isolation	Current - Output 1	Package / Case
RECOM Power RAC05-12SK	5-DIP Module	1 %	-25 °C	70 °C	1 in	25.4 mm	0.65 in	25.4 mm	25.4 mm	16.5 mm	Universal Input	0.5 %	Enclosed	CE cURus	0.044 lb	19.96 g	5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)	416 mA	Through Hole	12 V	81 %
RECOM Power RAC05-3.3SK	5-DIP Module	1 %	-25 °C	70 °C	1 in	25.4 mm	0.65 in	25.4 mm	25.4 mm	16.5 mm	Universal Input	0.5 %	Enclosed	CE cURus	0.044 lb	19.96 g	5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)		Through Hole	3.3 V	76 %	1.515 A
RECOM Power RAC05-3.3SK/C14			-25 °C	70 °C	2.17 "	28.5 mm	0.83 in	55.1 mm	1.12 in	21 mm	Universal Input		Enclosed	CB CE cURus FCC			5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)			3.3 V	76 %		3000 V	1.51 A
RECOM Power RAC05-3.3SK/277	9-DIP Module	1 %	-40 °C	85 °C	1.25 "	26.7 mm	0.86 in	31.7 mm	1.05 in	21.8 mm		0.5 %	Enclosed	CE cURus	0.069 lb	31.3 g	5 W	85 VAC 120 VDC	305 VAC 430 VDC	1	Household Appliances ITE (Commercial)	1.51 A	Through Hole	3.3 V	77 %				4 Lead
RECOM Power RAC05-12SK/277/W			-40 °C	85 °C	1.25 "	26.7 mm	0.86 in	31.7 mm	1.05 in	21.8 mm	Universal Input		Enclosed	CB CE cURus			5 W	85 VAC 120 VDC	305 VAC 430 VDC	1	Household Appliances ITE (Commercial)		Chassis Mount	12 V	83 %		3000 V	416 mA
RECOM Power RAC05-12SK/C14			-25 °C	70 °C	2.17 "	28.5 mm	0.83 in	55.1 mm	1.12 in	21 mm	Universal Input		Enclosed	CB CE cURus FCC			5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)			12 V	81 %		3000 V	420 mA
RECOM Power RAC05-24SK	5-DIP Module	1 %	-25 °C	70 °C	1 in	25.4 mm	0.65 in	25.4 mm	25.4 mm	16.5 mm	Universal Input	0.5 %	Enclosed	CE cURus	0.044 lb	19.96 g	5 W	85 VAC 120 VDC	264 VAC 370 VDC	1	ITE (Commercial)	210 mA	Through Hole	24 V	84 %
RECOM Power RAC05-3.3SK/277/W			-40 °C	85 °C	1.25 "	26.7 mm	0.86 in	31.7 mm	1.05 in	21.8 mm	Universal Input		Enclosed	CB CE cURus			5 W	85 VAC 120 VDC	305 VAC 430 VDC	1	Household Appliances ITE (Commercial)		Chassis Mount	3.3 V	77 %		3000 V	1.51 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.63
		5	$ 11.46
		10	$ 11.30
		25	$ 10.63
		50	$ 10.30
		100	$ 9.97
		250	$ 9.64
		500	$ 9.30
Newark	Each	10	$ 11.75
		25	$ 10.28
Sager	N/A	1	$ 10.97
		5	$ 10.28
		10	$ 9.82
		25	$ 9.41
		50	$ 9.02
		100	$ 8.43
		250	$ 8.04

Description

General part information

RAC05-3.3 Series

AC/DC Power Modules 5W 85-264Vin 15Vout 333mA 1x1in

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Document
