119S101-S20D3

Active

Rosenberger

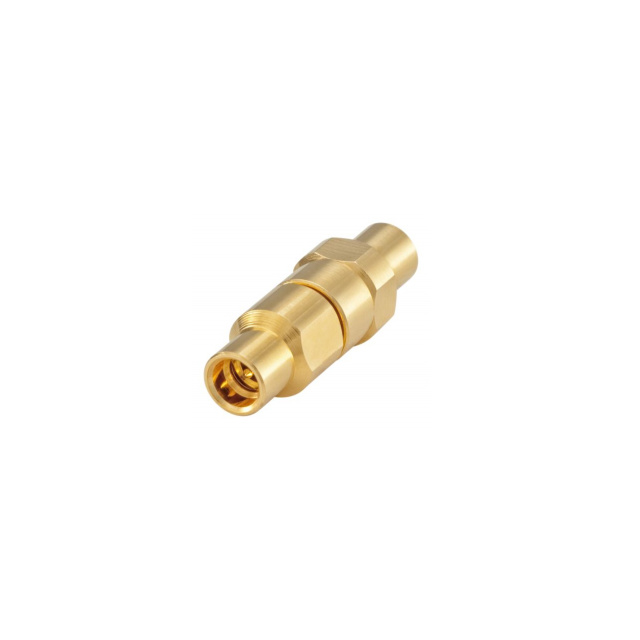

PSMP CALIBRATION ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PSMP CALIBRATION ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	119S101-S20D3

Accessory Type	Calibration Adapter
For Use With/Related Products	Network Analyzer
Specifications	P-SMP Plug, Plug
Type	Specialized

Part	Center Contact Material	Housing Color	Shield Termination	Body Finish	Features	Mounting Type	Contact Termination	Fastening Type	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Material	Impedance	Connector Style	Number of Ports	Voltage Rating	Frequency - Max [Max]	Dielectric Material	Accessory Type	Specifications	Type	For Use With/Related Products
Rosenberger 119S101-40ML5	Brass	Gold	Solder	Gold	Limited Detent	Surface Mount	Solder	Snap-On	Gold	-65 ░C	165 °C	Male Pin Plug	Brass	50 Ohms	PSMP	1	480 V	10 GHz	Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK)
Rosenberger 119S101-S20D3																				Calibration Adapter	P-SMP Plug Plug	Specialized	Network Analyzer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1542.02

General part information

Specialized Calibration Adapter for use with Network Analyzer
