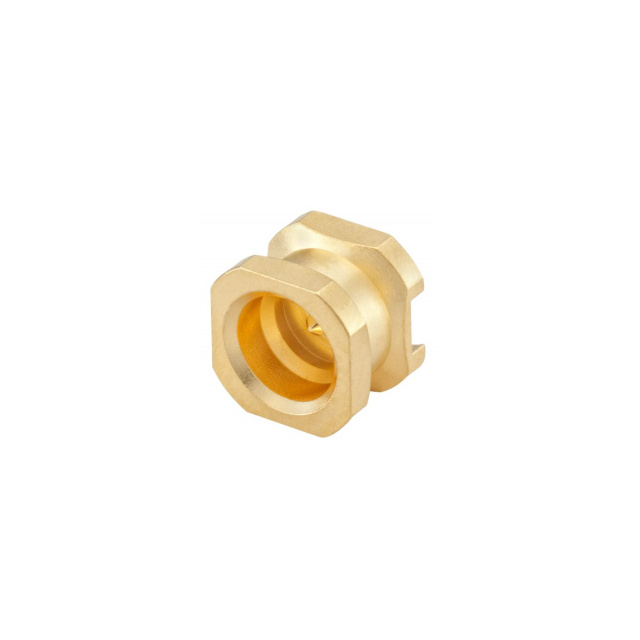

119S101-40ML5

Active

Rosenberger

CONN PSMP PLUG STR 50OHM SMD

Search across all available documentation for this part.

Active

Rosenberger

CONN PSMP PLUG STR 50OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	119S101-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	PSMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP), Polyetheretherketone (PEEK)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Center Contact Material	Housing Color	Shield Termination	Body Finish	Features	Mounting Type	Contact Termination	Fastening Type	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Material	Impedance	Connector Style	Number of Ports	Voltage Rating	Frequency - Max [Max]	Dielectric Material	Accessory Type	Specifications	Type	For Use With/Related Products
Rosenberger 119S101-40ML5	Brass	Gold	Solder	Gold	Limited Detent	Surface Mount	Solder	Snap-On	Gold	-65 ░C	165 °C	Male Pin Plug	Brass	50 Ohms	PSMP	1	480 V	10 GHz	Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK)
Rosenberger 119S101-S20D3																				Calibration Adapter	P-SMP Plug Plug	Specialized	Network Analyzer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PSMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder

Technical documentation and resources
