YB26NKW01

Active

NKK Switches

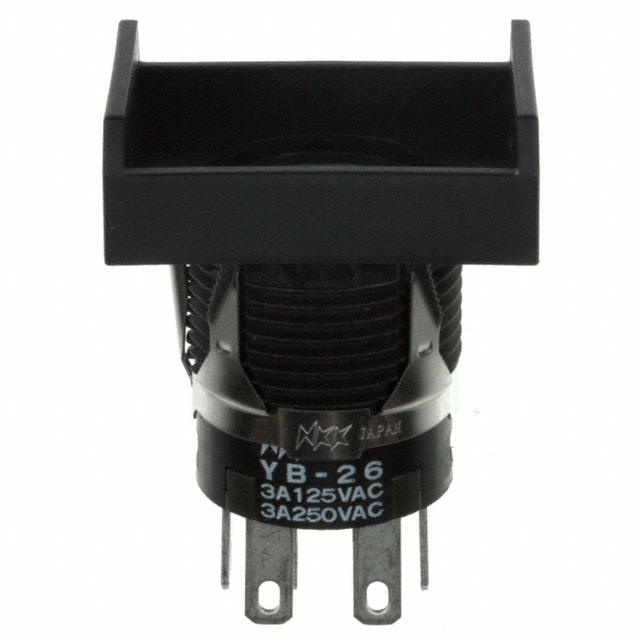

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26NKW01

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26NKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB26NK Series

Part	Switch Function	Actuator Type	Voltage Rating - AC	Illumination Type, Color	Features	Electrical Life	Illumination Voltage (Nominal)	Mechanical Life	Termination Style	Termination Style	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Type	Circuit	Panel Cutout Dimensions [diameter]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches YB26NKW01-5F-JB	On-On	Rectangular Button	125 V	Green LED	Voltage Reduction Lighting	100000 Cycles	2.2 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-BB	On-On	Rectangular Button	125 V		Voltage Reduction Lighting	100000 Cycles		200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	White	3 A	No Marking	30 V	Standard	DPDT	16 mm	Panel Mount Snap-In	70 °C	-25 °C
NKK Switches YB26NKW01-5C24-JC	On-On	Rectangular Button	125 V	LED Red	Voltage Reduction Lighting	100000 Cycles	24 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear (Red Filter/Diffuser)	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-1CF02-JB	On-On	Rectangular Button	125 V	Green/Red LED	Voltage Reduction Lighting	100000 Cycles	2 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-5D12-JD	On-On	Rectangular Button	125 V	Amber LED	Voltage Reduction Lighting	100000 Cycles	12 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKG01-1CF02-JA	On-On	Rectangular Button	28 V	Green/Red LED	Voltage Reduction Lighting	100000 Cycles	2 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	0.4 VA	No Marking	28 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-1C12-JC	On-On	Rectangular Button	125 V	LED Red	Voltage Reduction Lighting	100000 Cycles	12 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear (Red Filter/Diffuser)	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01	On-On	Plunger for Cap	125 V		Voltage Reduction Lighting	100000 Cycles		200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm		3 A	No Marking	30 V	Standard	DPDT	16 mm	Panel Mount Snap-In	70 °C	-25 °C
NKK Switches YB26NKW01-1F12-JB	On-On	Rectangular Button	125 V	Green LED	Voltage Reduction Lighting	100000 Cycles	12 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKG01	On-On	Plunger for Cap	28 V		Voltage Reduction Lighting	100000 Cycles		200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm		0.4 VA	No Marking	28 V	Standard	DPDT	16 mm	Panel Mount Snap-In	70 °C	-25 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.37
Newark	Each	1	$ 32.02
		5	$ 30.41
		10	$ 28.18
		25	$ 25.71
		50	$ 22.25
		100	$ 20.77
		250	$ 18.91

Description

General part information

YB26NK Series

Pushbutton Switch DPDT Standard Panel Mount, Snap-In

Documents

Technical documentation and resources
