YB26NKW01-1C12-JC

Active

NKK Switches

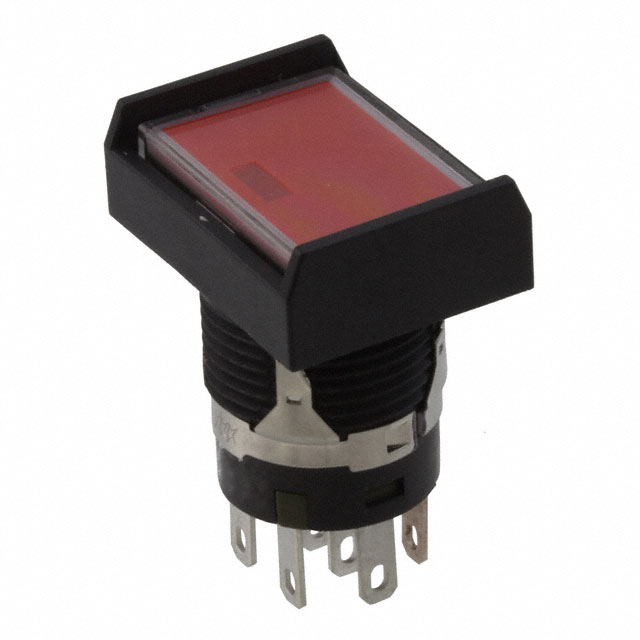

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26NKW01-1C12-JC

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26NKW01-1C12-JC

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB26NK Series

Part	Switch Function	Actuator Type	Voltage Rating - AC	Illumination Type, Color	Features	Electrical Life	Illumination Voltage (Nominal)	Mechanical Life	Termination Style	Termination Style	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Type	Circuit	Panel Cutout Dimensions [diameter]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches YB26NKW01-5F-JB	On-On	Rectangular Button	125 V	Green LED	Voltage Reduction Lighting	100000 Cycles	2.2 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-BB	On-On	Rectangular Button	125 V		Voltage Reduction Lighting	100000 Cycles		200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	White	3 A	No Marking	30 V	Standard	DPDT	16 mm	Panel Mount Snap-In	70 °C	-25 °C
NKK Switches YB26NKW01-5C24-JC	On-On	Rectangular Button	125 V	LED Red	Voltage Reduction Lighting	100000 Cycles	24 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear (Red Filter/Diffuser)	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-1CF02-JB	On-On	Rectangular Button	125 V	Green/Red LED	Voltage Reduction Lighting	100000 Cycles	2 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-5D12-JD	On-On	Rectangular Button	125 V	Amber LED	Voltage Reduction Lighting	100000 Cycles	12 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKG01-1CF02-JA	On-On	Rectangular Button	28 V	Green/Red LED	Voltage Reduction Lighting	100000 Cycles	2 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	0.4 VA	No Marking	28 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01-1C12-JC	On-On	Rectangular Button	125 V	LED Red	Voltage Reduction Lighting	100000 Cycles	12 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear (Red Filter/Diffuser)	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKW01	On-On	Plunger for Cap	125 V		Voltage Reduction Lighting	100000 Cycles		200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm		3 A	No Marking	30 V	Standard	DPDT	16 mm	Panel Mount Snap-In	70 °C	-25 °C
NKK Switches YB26NKW01-1F12-JB	On-On	Rectangular Button	125 V	Green LED	Voltage Reduction Lighting	100000 Cycles	12 VDC	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Clear	3 A	No Marking	30 V	Illuminated Standard	DPDT	16 mm	Panel Mount Snap-In	50 °C	-25 °C
NKK Switches YB26NKG01	On-On	Plunger for Cap	28 V		Voltage Reduction Lighting	100000 Cycles		200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm		0.4 VA	No Marking	28 V	Standard	DPDT	16 mm	Panel Mount Snap-In	70 °C	-25 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 23.22
		10	$ 21.09
		25	$ 20.14
		40	$ 19.07
		80	$ 18.36
		230	$ 17.18
		440	$ 14.66
Newark	Each	1	$ 40.75
		5	$ 36.34
		10	$ 35.11
		25	$ 33.17
		50	$ 30.87
		100	$ 27.35
		250	$ 24.52

Description

General part information

YB26NK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources
