09140060301

Active

HARTING Technology Group

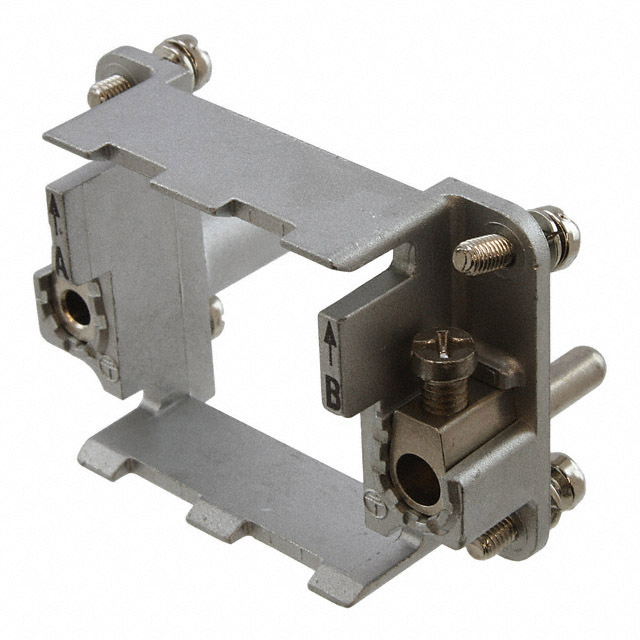

HAN MODULAR FRAME 6 HOOD 2 MODULE A-B ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN MODULAR FRAME 6 HOOD 2 MODULE A-B ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Gender	Frame Type	Number of Modules	Material	Size
HARTING Technology Group 09140060304	125 °C	-40 °C	1 Frame 4 Screws	Female Male	Hinged Retaining Frame	2	Zinc Die Cast	6B
HARTING Technology Group 09140060313	125 °C	-40 °C	1 Frame 4 Screws	Female	Hinged Retaining Frame	2	Zinc Die Cast	6B
HARTING Technology Group 09140060315					Hinged Retaining Frame			6B
HARTING Technology Group 09140060314	125 °C	-40 °C	1 Frame 4 Screws	Female Male	Hinged Retaining Frame	2	Zinc Die Cast	6B
HARTING Technology Group 09140060311					Fixed Frame	2
HARTING Technology Group 09140060301					Fixed Frame	2
HARTING Technology Group 09140060303	125 °C	-40 °C	1 Frame 4 Screws	Male	Hinged Retaining Frame	2	Zinc Die Cast	6B
HARTING Technology Group 09140060361	125 °C	-40 °C	1 Frame 4 Screws	Non-Gendered	Hinged Retaining Frame	2	Zinc Die Cast	6B
HARTING Technology Group 09140060305					Hinged Retaining Frame			6B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Module Heavy Duty Fixed Frame Size
