09140060313
ActiveCONNECTOR ACCESSORY, HAN MODULAR FRAME, HINGED FRAME HAN MODULAR
Deep-Dive with AI
Search across all available documentation for this part.
09140060313
ActiveCONNECTOR ACCESSORY, HAN MODULAR FRAME, HINGED FRAME HAN MODULAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09140060313 |
|---|---|
| Frame Type | Hinged, Retaining Frame |
| Gender | Female |
| Includes | 1 Frame, 4 Screws |
| Material | Zinc Die Cast |
| Number of Modules | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.03 | |
| 10 | $ 25.52 | |||
| 26 | $ 23.86 | |||
| 50 | $ 22.78 | |||
| 100 | $ 21.69 | |||
| 250 | $ 20.34 | |||
| 500 | $ 19.52 | |||
Description
General part information
09140060 Series

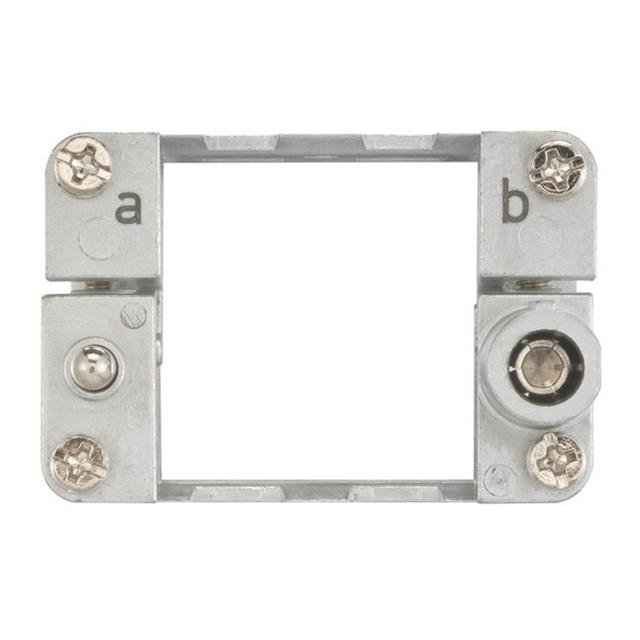

The 09140060313 is a Hinged Frame 6B for 2 modules (A..B), female insert with zinc die cast housing. The Han-Modular® series is a heavy duty connector system that provides users with a very high degree of interconnect design and manufacturing flexibility. In addition to connections of electrical power and signals it is also possible to make pluggable connections for both optical and gaseous mediums with the Han-Modular® system.
