09370100301

Active

HARTING Technology Group

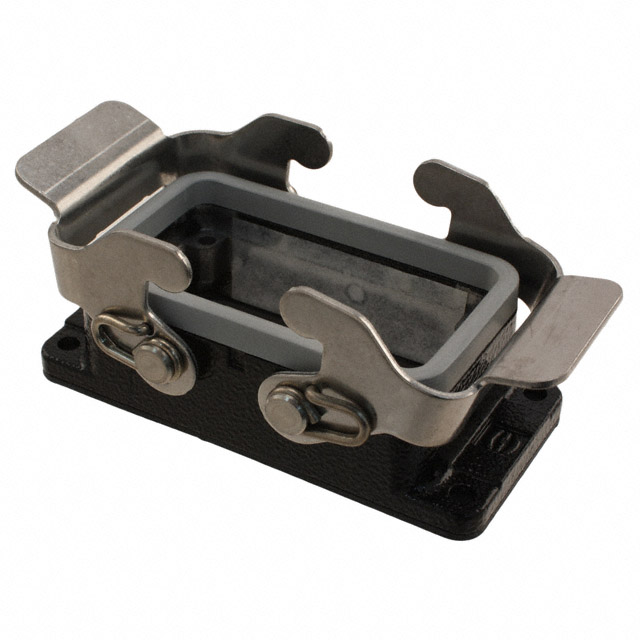

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 10B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 10B

Technical Specifications

Parameters and characteristics for this part

Specification	09370100301

Connector Type	Base - Panel Mount
Housing Color	Black
Housing Finish	Epoxy Powder Paint
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	93 mm
Size / Dimension [x]	3.661 inches
Size / Dimension [y]	43.4 mm
Size / Dimension [y]	1.709 in
Size / Dimension [z]	1.165 in
Size / Dimension [z]	29.6 mm
Style	Bottom Entry

Part	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Connector Type	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Size	Housing Material	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09370100397	Locking Clip (1) on Base Bottom	2.165 in	34.4 mm	3.882 in	55 mm	1.354 in	98.6 mm	IP66	Base - Panel Mount	Black	Bottom Entry	125 °C	-40 °C	Powder Coated	10B	Aluminum Die Cast
HARTING Technology Group 09370100522	Locking Clip (2) on Base Bottom		2.835 in		1.693 in		2.858 in		Hood		Side Entry				10B		PG21	72.6 mm	43 mm	72 mm
HARTING Technology Group 09370100391	Locking Clip (2) on Base Bottom	2.165 in	34.4 mm	3.882 in	55 mm	1.354 in	98.6 mm	IP66	Base - Panel Mount	Black	Bottom Entry	125 °C	-40 °C	Powder Coated	10B	Aluminum Die Cast
HARTING Technology Group 09370100801	Locking Clip (2) on Base Bottom		2.835 in		1.693 in		2.858 in		Hood		Bottom Entry				10B			72.6 mm	43 mm	72 mm
HARTING Technology Group 09370100301	Locking Clip (2) on Base Bottom	1.709 in	29.6 mm	3.661 inches	43.4 mm	1.165 in	93 mm	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Black	Bottom Entry	125 °C	-40 °C	Epoxy Powder Paint	10B	Aluminum Die Cast
HARTING Technology Group 09370100392	Locking Clip (2) on Base Bottom	2.165 in	34.4 mm	3.882 in	55 mm	1.354 in	98.6 mm	IP66	Base - Panel Mount	Black	Bottom Entry	125 °C	-40 °C	Powder Coated	10B	Aluminum Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant
