09370100397
ActiveHARTING Technology Group

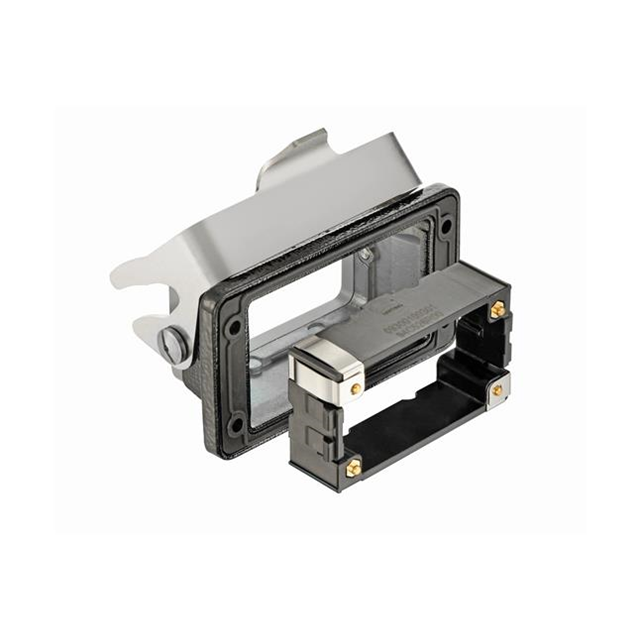

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 10B
Deep-Dive with AI
Search across all available documentation for this part.
09370100397
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 10B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09370100397 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Size / Dimension [x] | 3.882 in |
| Size / Dimension [x] | 98.6 mm |
| Size / Dimension [y] | 2.165 in |
| Size / Dimension [y] | 55 mm |
| Size / Dimension [z] | 34.4 mm |
| Size / Dimension [z] | 1.354 in |
| Style | Bottom Entry |
09370100 Series
| Part | Lock Location | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Ingress Protection | Connector Type | Housing Color | Style | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Size | Housing Material | Thread Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Locking Clip (1) on Base Bottom | 2.165 in | 34.4 mm | 3.882 in | 55 mm | 1.354 in | 98.6 mm | IP66 | Base - Panel Mount | Black | Bottom Entry | 125 °C | -40 °C | Powder Coated | 10B | Aluminum Die Cast | ||||
HARTING Technology Group | Locking Clip (2) on Base Bottom | 2.835 in | 1.693 in | 2.858 in | Hood | Side Entry | 10B | PG21 | 72.6 mm | 43 mm | 72 mm | |||||||||
HARTING Technology Group | Locking Clip (2) on Base Bottom | 2.165 in | 34.4 mm | 3.882 in | 55 mm | 1.354 in | 98.6 mm | IP66 | Base - Panel Mount | Black | Bottom Entry | 125 °C | -40 °C | Powder Coated | 10B | Aluminum Die Cast | ||||
HARTING Technology Group | Locking Clip (2) on Base Bottom | 2.835 in | 1.693 in | 2.858 in | Hood | Bottom Entry | 10B | 72.6 mm | 43 mm | 72 mm | ||||||||||
HARTING Technology Group | Locking Clip (2) on Base Bottom | 1.709 in | 29.6 mm | 3.661 inches | 43.4 mm | 1.165 in | 93 mm | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Black | Bottom Entry | 125 °C | -40 °C | Epoxy Powder Paint | 10B | Aluminum Die Cast | ||||
HARTING Technology Group | Locking Clip (2) on Base Bottom | 2.165 in | 34.4 mm | 3.882 in | 55 mm | 1.354 in | 98.6 mm | IP66 | Base - Panel Mount | Black | Bottom Entry | 125 °C | -40 °C | Powder Coated | 10B | Aluminum Die Cast |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09370100 Series
Base - Panel Mount Connector Bottom Entry 10B IP66 - Dust Tight, Water Resistant
