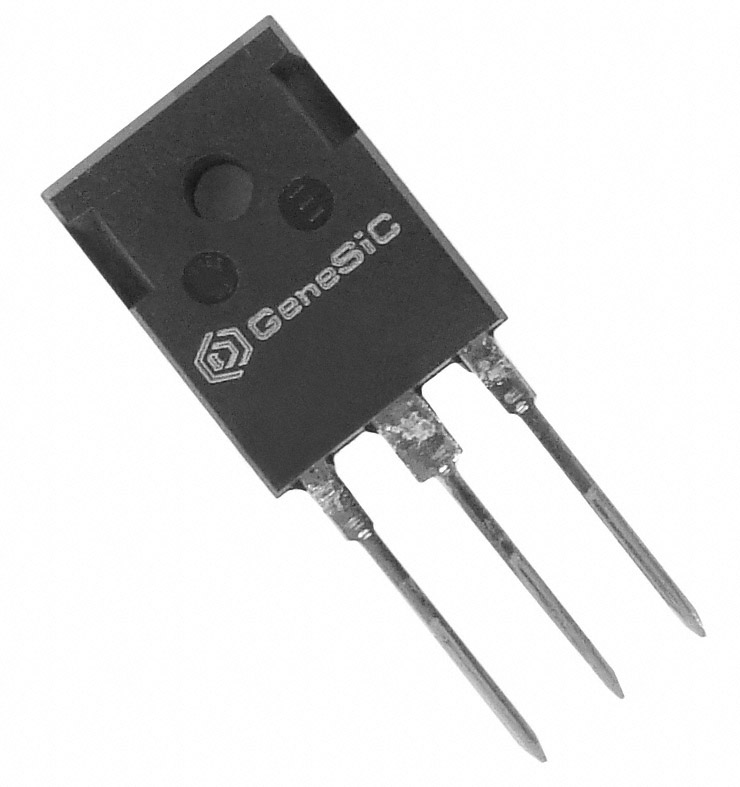

GB10SLT12-247D

Obsolete

GeneSiC Semiconductor

DIODE ARR SIC SCHOT 1200V TO247

Search across all available documentation for this part.

Obsolete

GeneSiC Semiconductor

DIODE ARR SIC SCHOT 1200V TO247

Technical Specifications

Parameters and characteristics for this part

Specification	GB10SLT12-247D

Current - Average Rectified (Io) (per Diode)	12 A
Current - Reverse Leakage @ Vr	50 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-247
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.9 V

Part	Package / Case	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Supplier Device Package	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Speed	Current - Average Rectified (Io) (per Diode)
GeneSiC Semiconductor GB10SLT12-252	DPAK (2 Leads + Tab) SC-63 TO-252-3	No Recovery Time	2 V	1.2 kV	Surface Mount	TO-252	10 A	0 ns	250 µA	175 ░C	-55 C	SiC (Silicon Carbide) Schottky	520 pF
GeneSiC Semiconductor GB10SLT12-220	TO-220-2	No Recovery Time		1.2 kV	Through Hole	TO-220-2	10 A	0 ns	40 µA	175 ░C	-55 C	SiC (Silicon Carbide) Schottky	520 pF	1.8 V
GeneSiC Semiconductor GB10SLT12-247D	TO-247-3			1.2 kV	Through Hole	TO-247			50 µA	175 ░C	-55 C	SiC (Silicon Carbide) Schottky		1.9 V	1 Pair Common Cathode	200 mA 500 ns	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 1200 V 12A Through Hole TO-247-3
