19628100427

Active

HARTING Technology Group

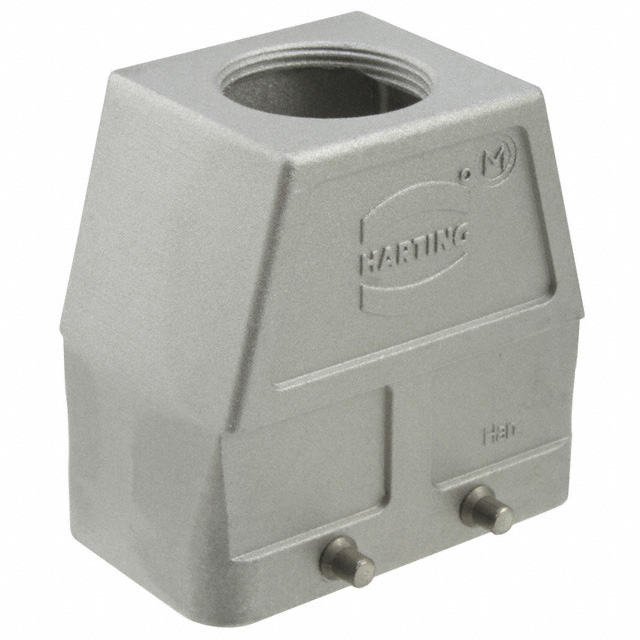

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 10B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19628100427 Prod Declaration Cert +1

19628100427

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 10B

Deep-Dive with AI

DocumentsDatasheet 19628100427 Prod Declaration Cert +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19628100427

Connector Type	Hood
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.835 in
Size / Dimension [z]	72 mm
Style	Top Entry
Thread Size	M32

19628100 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Thread Size	Style	Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Lock Location	Features	Housing Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Housing Finish
HARTING Technology Group 19628100292	200 °C	-40 °C	IP65 - Dust Tight Water Resistant	Base - Box Mount	M32	Side Entry Dual	10B	94 mm	3.701 "	80.8 mm	57 mm	2.244 "	3.181 "	Locking Clip (2) on Base Bottom	Feed Through	Aluminum Die Cast
HARTING Technology Group 19628100766	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	M25	Top Entry	10B	72.6 mm	2.858 "	75 mm	43 mm	1.693 in	2.953 in	Locking Clip (2) on Hood	Cable to Cable	Aluminum Die Cast
HARTING Technology Group 19628100526	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	M25	Side Entry	10B	2.858 in		2.835 in	1.693 in			Locking Clip (2) on Base Bottom		Aluminum Die Cast	72.6 mm	43 mm	72 mm
HARTING Technology Group 19628100272	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Base - Box Mount	M32	Side Entry	10B	94 mm	3.701 "	81.95 mm	57 mm	2.244 "	3.226 "	Locking Clip (2) on Base Bottom	Feed Through	Aluminum Die Cast
HARTING Technology Group 19628100757	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	M32	Bottom Entry	10B	72.6 mm	2.858 "	74.2 mm	43 mm	1.693 in	2.921 in	Locking Clip (1) on Hood Top	Cable to Cable	Aluminum Die Cast
HARTING Technology Group 19628100427	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	M32	Top Entry	10B	2.858 in		2.835 in	1.693 in			Locking Clip (2) on Base Bottom		Aluminum Die Cast	72.6 mm	43 mm	72 mm	EMC Coating

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.25
		10	$ 45.03
		25	$ 40.63
		50	$ 37.78
		100	$ 35.27
		250	$ 32.42
Newark	Each	1	$ 51.98
		5	$ 47.17
		10	$ 42.36
		25	$ 42.35
		50	$ 39.52
		100	$ 35.81

Description

General part information

19628100 Series

Hood Connector Top Entry M32 10B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

Datasheet

19628100427 Prod Declaration Cert

Datasheet

Technical Data Sheet EN

Datasheet
