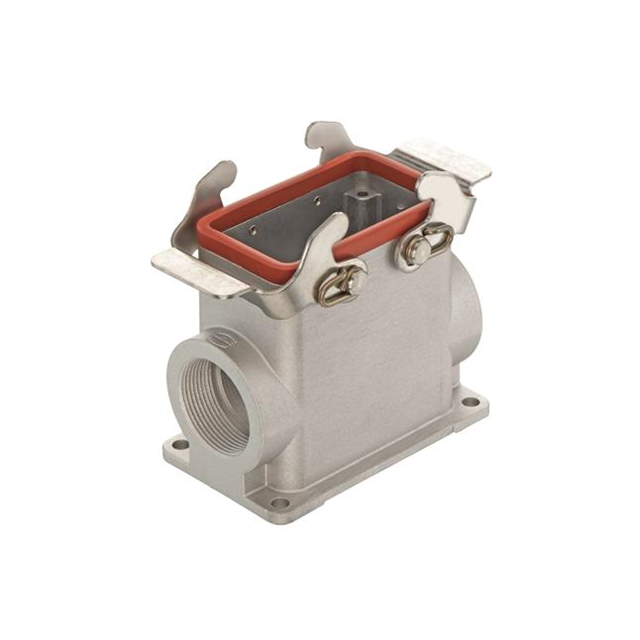

10B SURFACE MOUNT HOUSING, DOUBLE LEVER, HIGH CONSTRUCTION, 2XM32 - HIGH TEMP VERSION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19628100292 Prod Declaration Cert

19628100292

Active

HARTING Technology Group

10B SURFACE MOUNT HOUSING, DOUBLE LEVER, HIGH CONSTRUCTION, 2XM32 - HIGH TEMP VERSION

Deep-Dive with AI

DocumentsDatasheet 19628100292 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19628100292

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	94 mm
Size / Dimension [x]	3.701 "
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	80.8 mm
Size / Dimension [z]	3.181 "
Style	Side Entry, Dual
Thread Size	M32

19628100 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Thread Size	Style	Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Lock Location	Features	Housing Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Housing Finish
HARTING Technology Group 19628100292	200 °C	-40 °C	IP65 - Dust Tight Water Resistant	Base - Box Mount	M32	Side Entry Dual	10B	94 mm	3.701 "	80.8 mm	57 mm	2.244 "	3.181 "	Locking Clip (2) on Base Bottom	Feed Through	Aluminum Die Cast
HARTING Technology Group 19628100766	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	M25	Top Entry	10B	72.6 mm	2.858 "	75 mm	43 mm	1.693 in	2.953 in	Locking Clip (2) on Hood	Cable to Cable	Aluminum Die Cast
HARTING Technology Group 19628100526	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	M25	Side Entry	10B	2.858 in		2.835 in	1.693 in			Locking Clip (2) on Base Bottom		Aluminum Die Cast	72.6 mm	43 mm	72 mm
HARTING Technology Group 19628100272	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Base - Box Mount	M32	Side Entry	10B	94 mm	3.701 "	81.95 mm	57 mm	2.244 "	3.226 "	Locking Clip (2) on Base Bottom	Feed Through	Aluminum Die Cast
HARTING Technology Group 19628100757	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	M32	Bottom Entry	10B	72.6 mm	2.858 "	74.2 mm	43 mm	1.693 in	2.921 in	Locking Clip (1) on Hood Top	Cable to Cable	Aluminum Die Cast
HARTING Technology Group 19628100427	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	M32	Top Entry	10B	2.858 in		2.835 in	1.693 in			Locking Clip (2) on Base Bottom		Aluminum Die Cast	72.6 mm	43 mm	72 mm	EMC Coating
