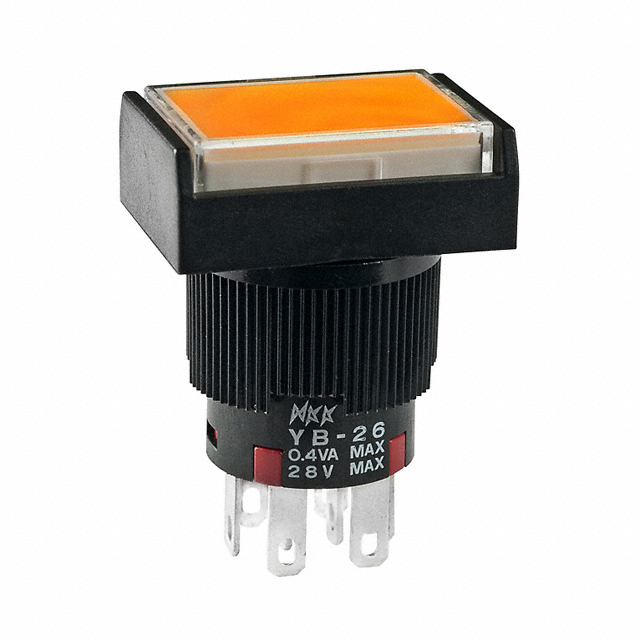

YB26RKG01-5D-JD

Active

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26RKG01-5D-JD

Active

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26RKG01-5D-JD

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB26RK Series

Part	Mechanical Life	Voltage Rating - DC	Circuit	Illumination Type, Color	Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Features	Mounting Type	Actuator Type	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Actuator Marking	Color - Actuator/Cap	Electrical Life	Termination Style	Termination Style	Termination Style
NKK Switches YB26RKW01-1C24-JC	200000 Cycles	30 V	DPDT	LED Red	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear (Red Filter/Diffuser)	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-2CF12-JB	200000 Cycles	30 V	DPDT	Green/Red LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	12 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-5F24-JF	200000 Cycles	30 V	DPDT	Green LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01	200000 Cycles	30 V	DPDT		Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Plunger for Cap	On-On	3 A	70 °C	-25 °C		No Marking		100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-5F12-JF	200000 Cycles	28 V	DPDT	Green LED	Illuminated Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	50 °C	-25 °C	12 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-5D-JD	200000 Cycles	28 V	DPDT	Amber LED	Illuminated Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	50 °C	-25 °C	2 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-2CF24-JB	200000 Cycles	30 V	DPDT	Green/Red LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-5F24-JB	200000 Cycles	30 V	DPDT	Green LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-JD	200000 Cycles	28 V	DPDT		Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	70 °C	-25 °C		No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-6G-JB	200000 Cycles	28 V	DPDT	Blue LED	Illuminated Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	50 °C	-25 °C	3.6 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
