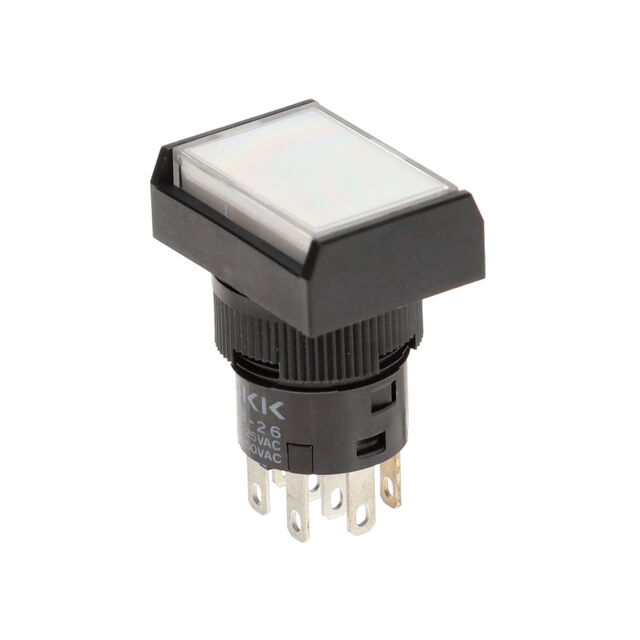

YB26RKW01-2CF24-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26RKW01-2CF24-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26RKW01-2CF24-JB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	24 V
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB26RK Series

Part	Mechanical Life	Voltage Rating - DC	Circuit	Illumination Type, Color	Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Features	Mounting Type	Actuator Type	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Actuator Marking	Color - Actuator/Cap	Electrical Life	Termination Style	Termination Style	Termination Style
NKK Switches YB26RKW01-1C24-JC	200000 Cycles	30 V	DPDT	LED Red	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear (Red Filter/Diffuser)	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-2CF12-JB	200000 Cycles	30 V	DPDT	Green/Red LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	12 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-5F24-JF	200000 Cycles	30 V	DPDT	Green LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01	200000 Cycles	30 V	DPDT		Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Plunger for Cap	On-On	3 A	70 °C	-25 °C		No Marking		100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-5F12-JF	200000 Cycles	28 V	DPDT	Green LED	Illuminated Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	50 °C	-25 °C	12 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-5D-JD	200000 Cycles	28 V	DPDT	Amber LED	Illuminated Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	50 °C	-25 °C	2 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-2CF24-JB	200000 Cycles	30 V	DPDT	Green/Red LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKW01-5F24-JB	200000 Cycles	30 V	DPDT	Green LED	Illuminated Standard	125 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	3 A	50 °C	-25 °C	24 V	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-JD	200000 Cycles	28 V	DPDT		Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	70 °C	-25 °C		No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB26RKG01-6G-JB	200000 Cycles	28 V	DPDT	Blue LED	Illuminated Standard	28 V	16 mm	Voltage Reduction Lighting	Panel Mount Front	Rectangular Button	On-On	0.4 VA	50 °C	-25 °C	3.6 VDC	No Marking	Clear	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 24.80
		10	$ 22.53
		25	$ 21.51
		40	$ 20.38
		80	$ 19.62
		230	$ 18.35
		440	$ 15.66
Newark	Each	1	$ 44.70
		5	$ 39.87
		10	$ 38.51
		25	$ 36.38
		50	$ 33.87
		100	$ 30.00
		250	$ 26.90

Description

General part information

YB26RK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources
