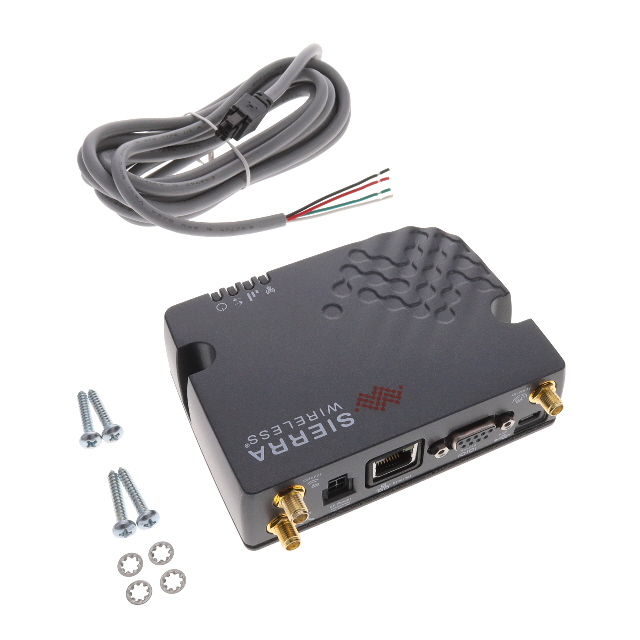

RV55_1104331

Active

Sierra Wireless AirLink

ROUTER WIFI LTE-A PRO GLOBAL -

Search across all available documentation for this part.

Active

Sierra Wireless AirLink

ROUTER WIFI LTE-A PRO GLOBAL -

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Data Rate (Max)	Sensitivity	Interface	Modulation or Protocol	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]
Sierra Wireless AirLink RV55_1104335	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular HSPA HSPA+ LTE	1.7 GHz 700 MHz 850 MHz 1900 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104303	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	1.5 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104302	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	1.5 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104332	General Purpose	300 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM LTE	700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104333	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	1.5 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104331	General Purpose	300 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM LTE	700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	36 V	7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 949.00

General part information

4G/2G Cellular, EDGE, GPRS, GSM, LTE Router AT&T, Verizon Ethernet, RJ-45, RS-232, USB
