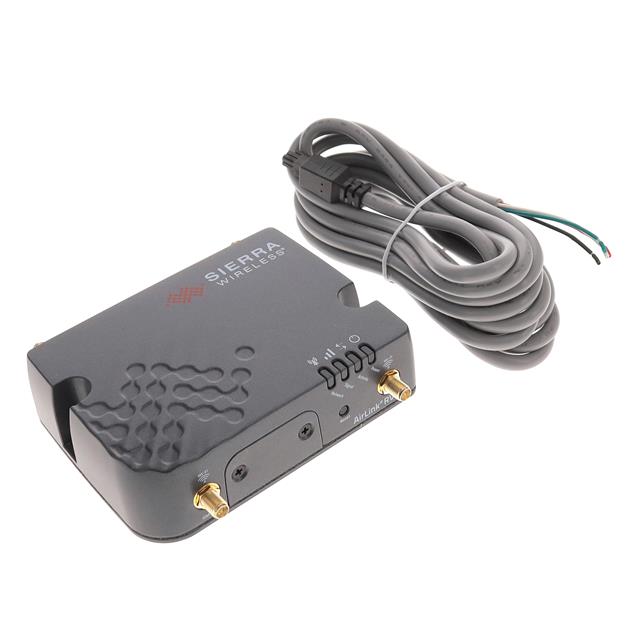

RV55_1104302

Active

Sierra Wireless AirLink

ROUTER WIFI LTE-A PRO NA -

Search across all available documentation for this part.

Active

Sierra Wireless AirLink

ROUTER WIFI LTE-A PRO NA -

Technical Specifications

Parameters and characteristics for this part

Specification	RV55_1104302

Applications	General Purpose
Data Rate (Max)	150 Mbps
Frequency	850 MHz, 2.3 GHz, 1900 MHz, 1.5 GHz, 800 MHz, 2100 MHz, 2600 MHz, 1800 MHz, 700 MHz, 900 MHz
Interface	RJ-45, USB, RS-232, Ethernet
Modulation or Protocol	GSM, LTE, Cellular, HSPA+, WCDMA, GPRS, EDGE
Sensitivity	-160 dBm
Voltage - Supply [Max]	36 V
Voltage - Supply [Min]	7 V

Part	Applications	Data Rate (Max)	Sensitivity	Interface	Modulation or Protocol	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]
Sierra Wireless AirLink RV55_1104335	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular HSPA HSPA+ LTE	1.7 GHz 700 MHz 850 MHz 1900 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104303	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	1.5 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104302	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	1.5 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104332	General Purpose	300 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM LTE	700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104333	General Purpose	150 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	1.5 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink RV55_1104331	General Purpose	300 Mbps	-160 dBm	Ethernet RJ-45 RS-232 USB	Cellular EDGE GPRS GSM LTE	700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	36 V	7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 949.00

General part information

4G/3G/2G Cellular, EDGE, GPRS, GSM, HSPA+, LTE, WCDMA Router AT&T, Telstra, Verizon Ethernet, RJ-45, RS-232, USB

Technical documentation and resources
