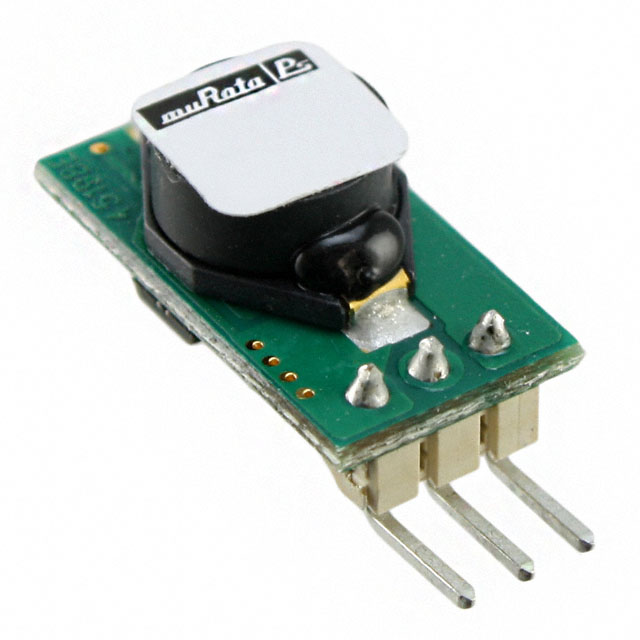

7803SR-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7803SR-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7803SR-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Size / Dimension [x] | 0.41 in, 10.4 mm |
| Size / Dimension [y] | 10.7 mm, 0.42 " |
| Size / Dimension [z] | 19.1 mm, 0.75 in |
| Type | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 7.5 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.43 | |
Description
General part information
78xxSR Series
Non-Isolated DC/DC Converters 2.5W 8-36VIN/5VOUT .5A DC/DC
