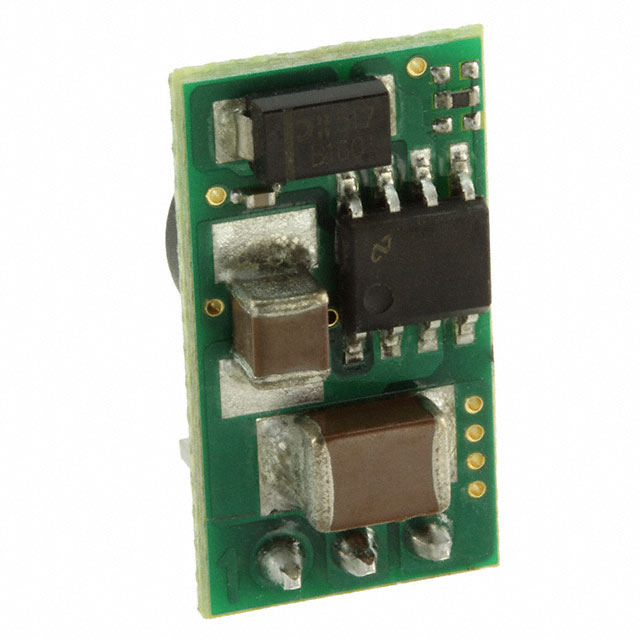

7812SRH-C

Active

Murata Power Solutions Inc.

MODULE DC-DC 1-OUT 12V 0.4A 4.8W 3-PIN SIP

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

MODULE DC-DC 1-OUT 12V 0.4A 4.8W 3-PIN SIP

Technical Specifications

Parameters and characteristics for this part

Specification	7812SRH-C

Applications	ITE (Commercial)
Current - Output (Max) [Max]	400 mA
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	4.8 W
Size / Dimension [x]	0.75 in
Size / Dimension [x]	19.1 mm
Size / Dimension [y]	10.4 mm
Size / Dimension [y]	0.41 in
Size / Dimension [z]	9.3 mm
Size / Dimension [z]	0.37 in
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	15 V
Voltage - Output 1	12 V

Non-Isolated DC/DC Converters 2.5W 8-36VIN/5VOUT .5A DC/DC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Features	Voltage - Output 1	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Package / Case	Power (Watts)	Efficiency
Murata Power Solutions Inc. 7812SRH-C	-40 °C	70 °C	36 V	9.3 mm	0.75 in	10.4 mm	19.1 mm	0.37 in	0.41 in	ITE (Commercial)	SCP	12 V	Linear Regulator Replacement	15 V	400 mA	Through Hole	1	3-SIP Module	4.8 W
Murata Power Solutions Inc. 7805SRH-C	-40 °C	70 °C	36 V	9.3 mm	0.75 in	10.4 mm	19.1 mm	0.37 in	0.41 in	ITE (Commercial)	SCP	5 V	Linear Regulator Replacement	7.5 V	500 mA	Through Hole	1	3-SIP Module	3 W	95 %
Murata Power Solutions Inc. 7805SR-C	-40 °C	70 °C	36 V	0.75 in 19.1 mm		0.42 " 10.7 mm	0.41 in 10.4 mm			ITE (Commercial)	SCP	5 V	Linear Regulator Replacement	7.5 V	500 mA	Through Hole	1	3-SIP Module	2 W
Murata Power Solutions Inc. 7803SR-C	-40 °C	70 °C	36 V	0.75 in 19.1 mm		0.42 " 10.7 mm	0.41 in 10.4 mm			ITE (Commercial)	SCP	3.3 V	Linear Regulator Replacement	7.5 V	500 mA	Through Hole	1	3-SIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated DC/DC Converters 2.5W 8-36VIN/5VOUT .5A DC/DC
