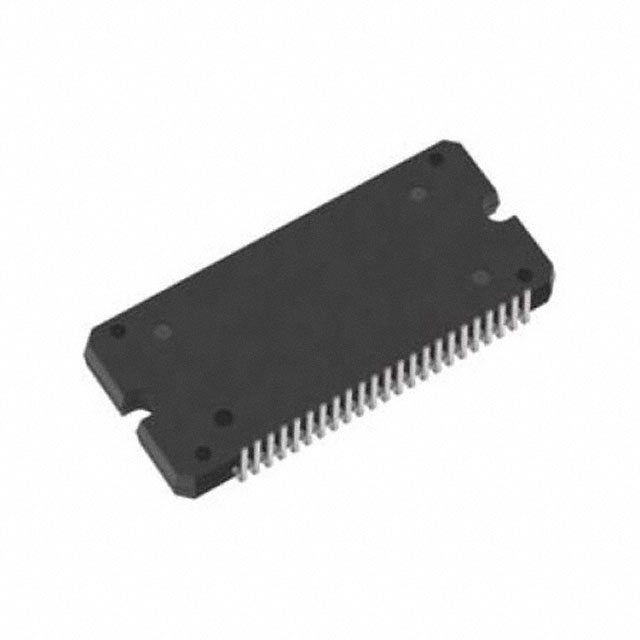

STK984-090A-E

Active

ON Semiconductor

INTELLIGENT POWER MODULE (IPM), 40 V, 20 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-127CZ-SIP 23 59.8x26.7 +1

STK984-090A-E

Active

ON Semiconductor

INTELLIGENT POWER MODULE (IPM), 40 V, 20 A

Deep-Dive with AI

DocumentsDatasheet Package Drawing-127CZ-SIP 23 59.8x26.7 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK984-090A-E

null

STK984-090A-E Series

Power Integrated Module (PIM), MOSFET, 40 V, 30 A

Part	Voltage	Current	Type	Mounting Type	Configuration
ON Semiconductor STK984-070-E
ON Semiconductor STK984-080-E
ON Semiconductor STK984-090A-E
ON Semiconductor STK984-190-E	40 V	30 A	MOSFET	Through Hole	3 Phase
ON Semiconductor STK984-091A-E
ON Semiconductor STK984-091B-E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	1	$ 19.09
		10	$ 16.82

Description

General part information

STK984-090A-E Series

The STK984-090A-E is a fully-integrated inverter power stage consisting of a gate driver, six MOSFET’s and a high-side shunt resistor, suitable for driving permanent magnet synchronous (PMSM) motors and brushless-DC (BLDC) motors. The MOSFET’s are configured in a 3-phase bridge with a single drain connection for the lower legs. The power stage has a full range of protection functions including cross-conduction protection, external shutdown and undervoltage lockout.
