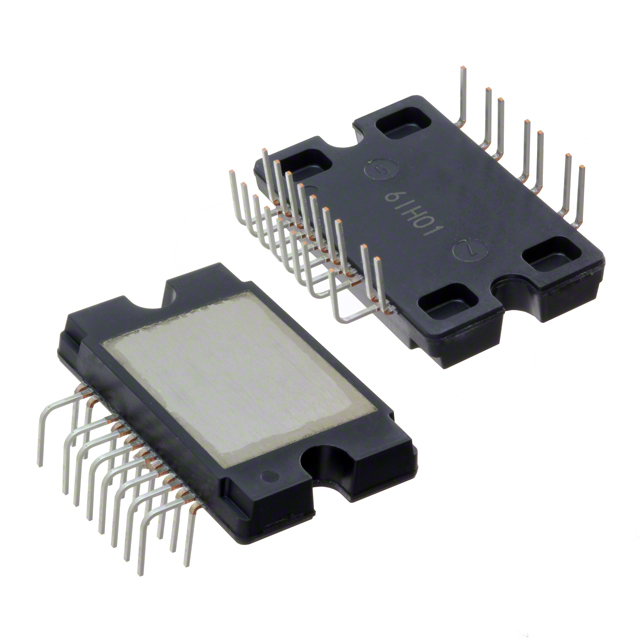

STK984-190-E

Obsolete

ON Semiconductor

POWER INTEGRATED MODULE (PIM), MOSFET, 40 V, 30 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPackage Drawing-MODBL-MODULE SPCM24 29.6x18.2 DIP S3 Datasheet

STK984-190-E

Obsolete

ON Semiconductor

POWER INTEGRATED MODULE (PIM), MOSFET, 40 V, 30 A

Deep-Dive with AI

DocumentsPackage Drawing-MODBL-MODULE SPCM24 29.6x18.2 DIP S3 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK984-190-E

Configuration	3 Phase
Current	30 A
Mounting Type	Through Hole
Type	MOSFET
Voltage	40 V

STK984-090A-E Series

Power Integrated Module (PIM), MOSFET, 40 V, 30 A

Part	Voltage	Current	Type	Mounting Type	Configuration
ON Semiconductor STK984-070-E
ON Semiconductor STK984-080-E
ON Semiconductor STK984-090A-E
ON Semiconductor STK984-190-E	40 V	30 A	MOSFET	Through Hole	3 Phase
ON Semiconductor STK984-091A-E
ON Semiconductor STK984-091B-E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK984-090A-E Series

The STK984-090A-E is a fully-integrated inverter power stage consisting of a gate driver, six MOSFET’s and a high-side shunt resistor, suitable for driving permanent magnet synchronous (PMSM) motors and brushless-DC (BLDC) motors. The MOSFET’s are configured in a 3-phase bridge with a single drain connection for the lower legs. The power stage has a full range of protection functions including cross-conduction protection, external shutdown and undervoltage lockout.
