3211822

Active

Phoenix Contact

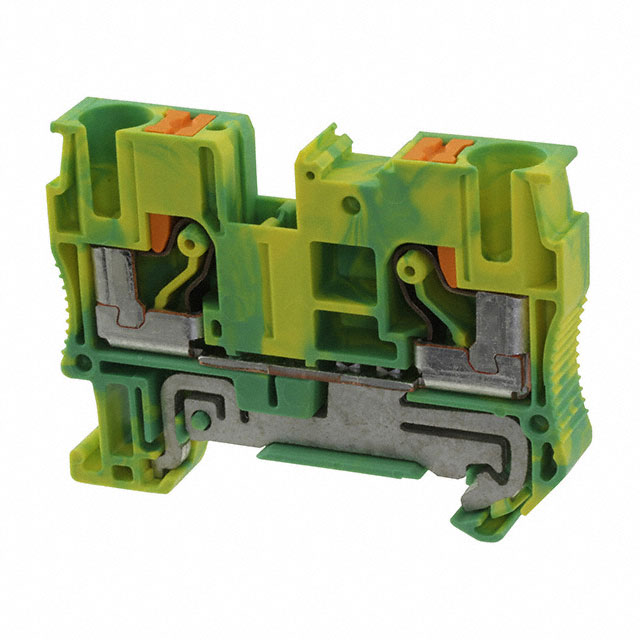

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², PUSH IN, 52 A

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², PUSH IN, 52 A

Technical Specifications

Parameters and characteristics for this part

Specification	3211822

Color	Green, Yellow
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length [x]	12 mm
Terminal - Width [y]	8.2 mm
Termination Style	Push In, Spring
Type	Ground, Earth
Wire Gauge or Range - AWG [Max]	20 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²

Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw

Part	For Use With/Related Products	Accessory Type	Number of Positions	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Color	Terminal - Width [y]	Material Flammability Rating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Material - Insulation	Stripping Length [x]	Housing Color	Height (Max) [Max]	Height (Max) [Max]	Stripping Length	Length [x]	Length [x]	Mounting Type
Phoenix Contact 2839415	PT Surge Protector	Base
Phoenix Contact 3211822			2	Push In Spring	10 mm²	0.5 mm²	Ground Earth	Green Yellow	8.2 mm	UL94 V-0	8 AWG	20 AWG	1	Nylon Polyamide (PA)	12 mm
Phoenix Contact 3212374				Plug Receptacles Push In Spring	1.5 mm²	0.14 mm²	Plug Connection		3.5 mm	UL94 V-0	14 AWG	26 AWG	1	Nylon Polyamide (PA)		Green Yellow	39.5 mm	1.555 in	8 mm	55 mm	2.165 in	DIN Rail
