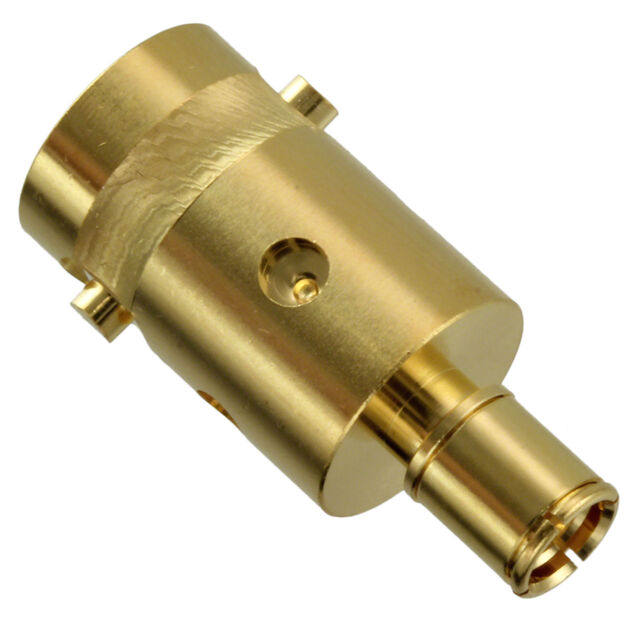

BNCJ-UMP(40)

LTB

Hirose Electric USA, Inc.

CONN ADAPT BNC JACK TO UMC PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BNCJ-UMP(40)

LTB

Hirose Electric USA, Inc.

CONN ADAPT BNC JACK TO UMC PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BNCJ-UMP(40)

Adapter Series	BNC to U.FL (UMCC)
Adapter Type	Plug to Jack
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, U.FL (UMCC) Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Bayonet Lock
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

BNC Series

Part	Connector Style	For Use With/Related Products	Accessory Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Adapter Type	Center Contact Plating	Adapter Series	Center Contact Material	Body Finish	Style	Center Gender	Convert From (Adapter End)	Impedance	Mounting Feature	Frequency - Max [Max]	Mating Cycles	Dielectric Material	Convert To (Adapter End)	Fastening Type	Conversion Type	Mounting Type
Hirose Electric USA, Inc. BNCP-MJ(41)
Hirose Electric USA, Inc. BNC-EL	BNC	BNC Bulkhead Jacks	Solder Tag
Hirose Electric USA, Inc. BNC-PA-JJ(41)				85 °C	-55 °C	Brass	Jack to Jack	Gold	BNC to BNC	Beryllium Copper	Nickel	Straight	Female to Female	BNC Jack Female Socket	50 Ohms	Flange	4 GHz	1000	Polytetrafluoroethylene (PTFE)	BNC Jack Female Socket	Bayonet Lock	Same Series
Hirose Electric USA, Inc. BNCP-MSSJ(40)				85 °C	-40 °C	Brass	Plug to Jack	Silver	BNC to MSS	Beryllium Copper	Silver	Straight		BNC Plug Male Pin	50 Ohms		3 GHz	3000	Polytetrafluoroethylene (PTFE)	Female Socket MMS Jack	Snap-On Threaded	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNCJ-MSSP(40)				85 °C	-40 °C	Brass	Plug to Jack	Silver	BNC to MSS	Phosphor Bronze	Silver	Straight		BNC Jack Female Socket	50 Ohms		3 GHz	3000	Polytetrafluoroethylene (PTFE)	Male Pin MMS Plug	Bayonet Lock Snap-On	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNC.J-TNC.J							Jack to Jack	Silver	BNC to TNC			Straight	Female to Female	BNC Jack Female Socket	50 Ohms		1 GHz	1000		Female Socket TNC Jack	Bayonet Lock Threaded	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNC-JCAP(01)
Hirose Electric USA, Inc. BNCJ-UMP(40)							Plug to Jack		BNC to U.FL (UMCC)			Straight	Female to Female	BNC Jack Female Socket	50 Ohms		2 GHz	500	Polytetrafluoroethylene (PTFE)	Female Socket U.FL (UMCC) Plug	Bayonet Lock Snap-On	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNCP-MJ(40)
Hirose Electric USA, Inc. BNCP-MSSP(40)				60 °C	-10 °C	Brass	Plug to Plug	Silver	BNC to MSS	Brass	Silver	Straight	Male to Male	BNC Plug Male Pin	50 Ohms		3 GHz	3000	Polytetrafluoroethylene (PTFE)	Male Pin MMS Plug	Bayonet Lock Snap-On	Between Series	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.76
		20	$ 27.82
		40	$ 25.75
		100	$ 24.90
		260	$ 23.52

Description

General part information

BNC Series

Adapter Coaxial Connector BNC Jack, Female Socket To U.FL (UMCC) Plug, Female Socket 50 Ohms
