CONN SLDR TAG BNC BULKHD JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BNC-EL

Active

Hirose Electric USA, Inc.

CONN SLDR TAG BNC BULKHD JACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BNC-EL

Accessory Type	Solder Tag
Connector Style	BNC
For Use With/Related Products	BNC Bulkhead Jacks

BNC Series

Part	Connector Style	For Use With/Related Products	Accessory Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Adapter Type	Center Contact Plating	Adapter Series	Center Contact Material	Body Finish	Style	Center Gender	Convert From (Adapter End)	Impedance	Mounting Feature	Frequency - Max [Max]	Mating Cycles	Dielectric Material	Convert To (Adapter End)	Fastening Type	Conversion Type	Mounting Type
Hirose Electric USA, Inc. BNCP-MJ(41)
Hirose Electric USA, Inc. BNC-EL	BNC	BNC Bulkhead Jacks	Solder Tag
Hirose Electric USA, Inc. BNC-PA-JJ(41)				85 °C	-55 °C	Brass	Jack to Jack	Gold	BNC to BNC	Beryllium Copper	Nickel	Straight	Female to Female	BNC Jack Female Socket	50 Ohms	Flange	4 GHz	1000	Polytetrafluoroethylene (PTFE)	BNC Jack Female Socket	Bayonet Lock	Same Series
Hirose Electric USA, Inc. BNCP-MSSJ(40)				85 °C	-40 °C	Brass	Plug to Jack	Silver	BNC to MSS	Beryllium Copper	Silver	Straight		BNC Plug Male Pin	50 Ohms		3 GHz	3000	Polytetrafluoroethylene (PTFE)	Female Socket MMS Jack	Snap-On Threaded	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNCJ-MSSP(40)				85 °C	-40 °C	Brass	Plug to Jack	Silver	BNC to MSS	Phosphor Bronze	Silver	Straight		BNC Jack Female Socket	50 Ohms		3 GHz	3000	Polytetrafluoroethylene (PTFE)	Male Pin MMS Plug	Bayonet Lock Snap-On	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNC.J-TNC.J							Jack to Jack	Silver	BNC to TNC			Straight	Female to Female	BNC Jack Female Socket	50 Ohms		1 GHz	1000		Female Socket TNC Jack	Bayonet Lock Threaded	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNC-JCAP(01)
Hirose Electric USA, Inc. BNCJ-UMP(40)							Plug to Jack		BNC to U.FL (UMCC)			Straight	Female to Female	BNC Jack Female Socket	50 Ohms		2 GHz	500	Polytetrafluoroethylene (PTFE)	Female Socket U.FL (UMCC) Plug	Bayonet Lock Snap-On	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. BNCP-MJ(40)
Hirose Electric USA, Inc. BNCP-MSSP(40)				60 °C	-10 °C	Brass	Plug to Plug	Silver	BNC to MSS	Brass	Silver	Straight	Male to Male	BNC Plug Male Pin	50 Ohms		3 GHz	3000	Polytetrafluoroethylene (PTFE)	Male Pin MMS Plug	Bayonet Lock Snap-On	Between Series	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 1.68
		300	$ 1.52
		500	$ 1.40
		1000	$ 1.20
		2500	$ 1.12
		5000	$ 1.06

Description

General part information

BNC Series

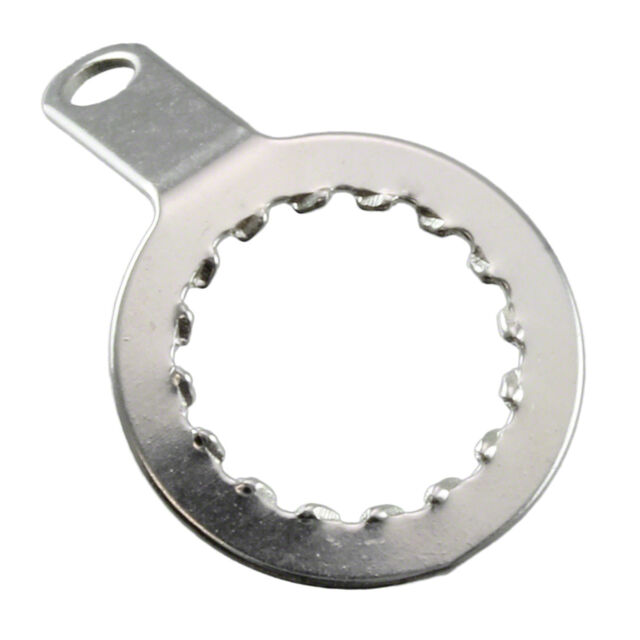

Connector Solder Tag For BNC Bulkhead Jacks
