787-1668

Active

WAGO Corporation

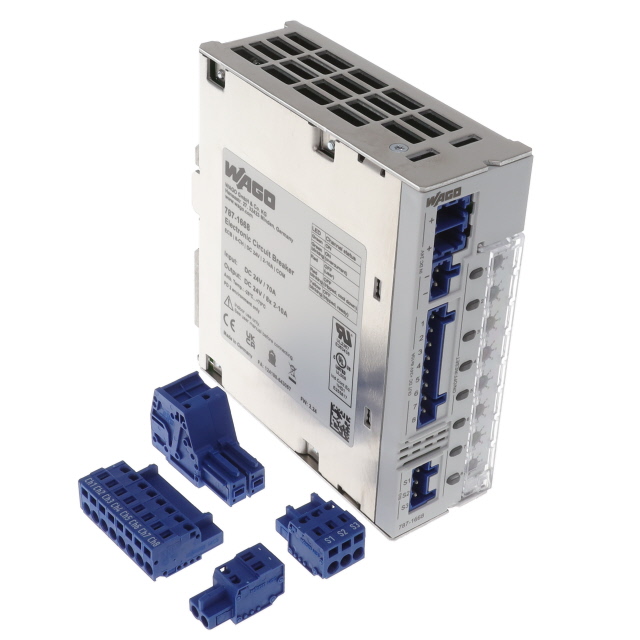

ELECTRONIC CIRCUIT BREAKER, 787 SERIES, 8 POLE, 24 VDC, DIN RAIL, 10 A

Search across all available documentation for this part.

Active

WAGO Corporation

ELECTRONIC CIRCUIT BREAKER, 787 SERIES, 8 POLE, 24 VDC, DIN RAIL, 10 A

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	DC Voltage - Input (Min) [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Outputs	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Standard Number	Voltage - Output 1	DC Voltage - Input (Max) [Max]	Input Type	Breaker Type	Actuator Type	Number of Poles	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Illumination
WAGO Corporation 787-1632	91 %	120 V	240 W	127 mm	172 mm	6.77 in	5 in	55 mm	2.17 in	cURus UL	-25 °C	70 °C	Adjustable Output IP20 PFC Universal Input	1	10 A	85 VAC	264 VAC	Industrial ITE (Commercial)	4.242 kV	60950-1 UL 508	24 V	372 V	AC or DC
WAGO Corporation 787-1668										CE UL														Solid State	Remote	8	24 V	10 A	DIN Rail	Green Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circuit Breaker Solid State 10A AC 24 V DC Remote DIN Rail
