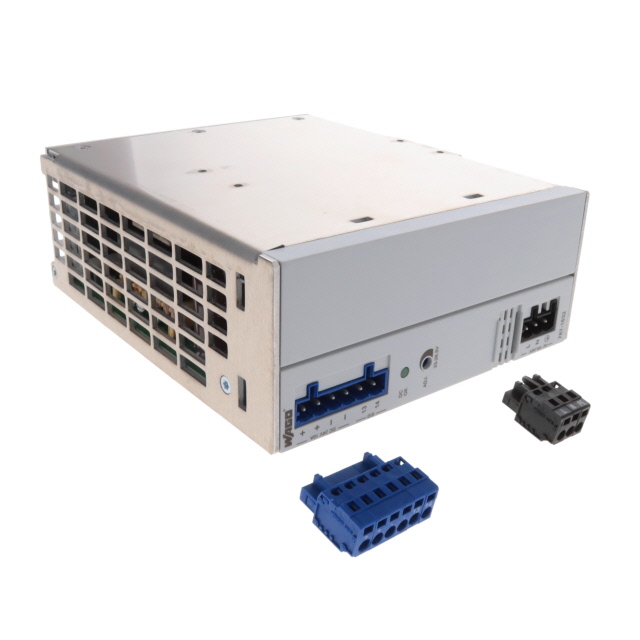

787-1632

Active

WAGO Corporation

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

WAGO Corporation

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	787-1632

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	UL, cURus
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	372 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	91 %
Features	Universal Input, IP20, Adjustable Output, PFC
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	240 W
Size / Dimension [x]	172 mm
Size / Dimension [x]	6.77 in
Size / Dimension [y]	55 mm
Size / Dimension [y]	2.17 in
Size / Dimension [z]	127 mm
Size / Dimension [z]	5 in
Standard Number	60950-1, UL 508
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

Part	Efficiency	DC Voltage - Input (Min) [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Outputs	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Standard Number	Voltage - Output 1	DC Voltage - Input (Max) [Max]	Input Type	Breaker Type	Actuator Type	Number of Poles	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Illumination
WAGO Corporation 787-1632	91 %	120 V	240 W	127 mm	172 mm	6.77 in	5 in	55 mm	2.17 in	cURus UL	-25 °C	70 °C	Adjustable Output IP20 PFC Universal Input	1	10 A	85 VAC	264 VAC	Industrial ITE (Commercial)	4.242 kV	60950-1 UL 508	24 V	372 V	AC or DC
WAGO Corporation 787-1668										CE UL														Solid State	Remote	8	24 V	10 A	DIN Rail	Green Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
