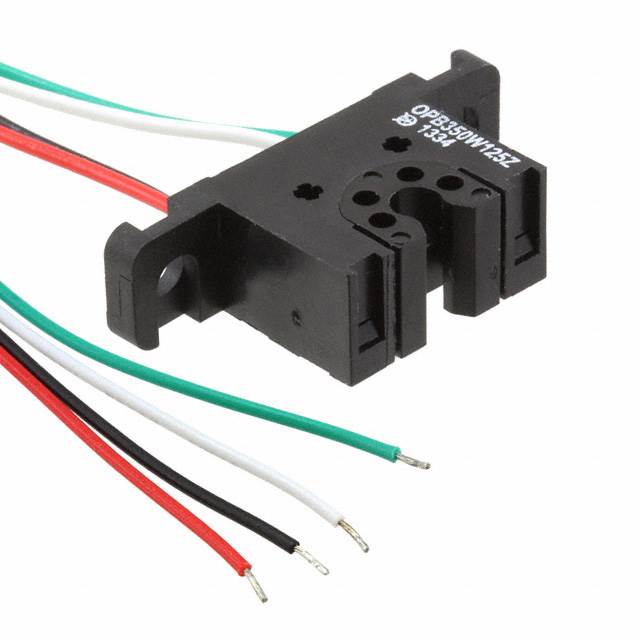

OPB350W125Z

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB350W125Z

Current - Collector (Ic) (Max) [Max]	50 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Slot Type, Module, Wire Leads
Sensing Distance	0.125 "
Sensing Distance	3.18 mm
Sensing Method	Liquid
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Method	Current - DC Forward (If) (Max)	Voltage - Collector Emitter Breakdown (Max) [Max]	Output Configuration	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Sensing Distance	Sensing Distance
TT Electronics/Optek Technology OPB350L062	Liquid	50 mA	30 V	Phototransistor	50 mA	85 °C	-40 °C	Through Hole	PCB Mount	1.6 mm	0.063 "
TT Electronics/Optek Technology OPB350W062Z	Liquid	50 mA	30 V	Phototransistor	50 mA	85 °C	-40 °C	Chassis Mount	Module Pre-Wired	1.6 mm	0.063 "
TT Electronics/Optek Technology OPB350W125Z	Liquid	50 mA	30 V	Phototransistor	50 mA	85 °C	-40 °C	Chassis Mount	Module Slot Type Wire Leads	3.18 mm	0.125 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Liquid 0.125" (3.18mm) Phototransistor Module, Wire Leads, Slot Type
