OPB350W062Z

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB350W062Z

Current - Collector (Ic) (Max) [Max]	50 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Module, Pre-Wired
Sensing Distance	1.6 mm
Sensing Distance	0.063 "
Sensing Method	Liquid
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Method	Current - DC Forward (If) (Max)	Voltage - Collector Emitter Breakdown (Max) [Max]	Output Configuration	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Sensing Distance	Sensing Distance
TT Electronics/Optek Technology OPB350L062	Liquid	50 mA	30 V	Phototransistor	50 mA	85 °C	-40 °C	Through Hole	PCB Mount	1.6 mm	0.063 "
TT Electronics/Optek Technology OPB350W062Z	Liquid	50 mA	30 V	Phototransistor	50 mA	85 °C	-40 °C	Chassis Mount	Module Pre-Wired	1.6 mm	0.063 "
TT Electronics/Optek Technology OPB350W125Z	Liquid	50 mA	30 V	Phototransistor	50 mA	85 °C	-40 °C	Chassis Mount	Module Slot Type Wire Leads	3.18 mm	0.125 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

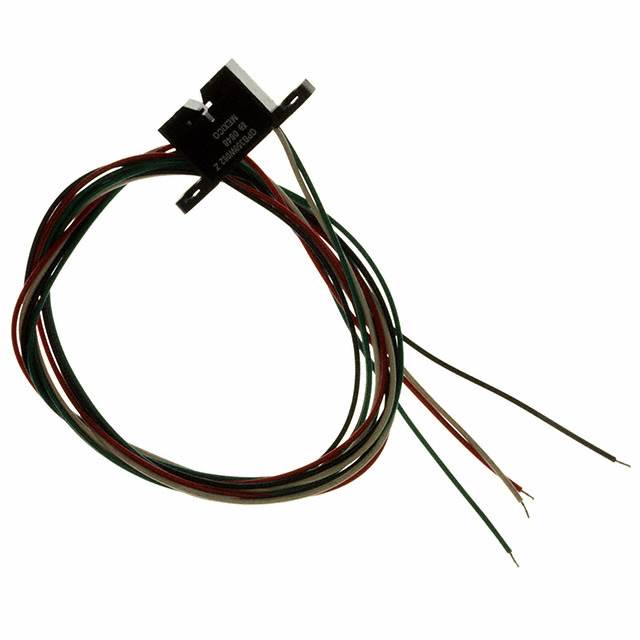

Optical Sensor Liquid 0.063" (1.6mm) Phototransistor Module, Pre-Wired
