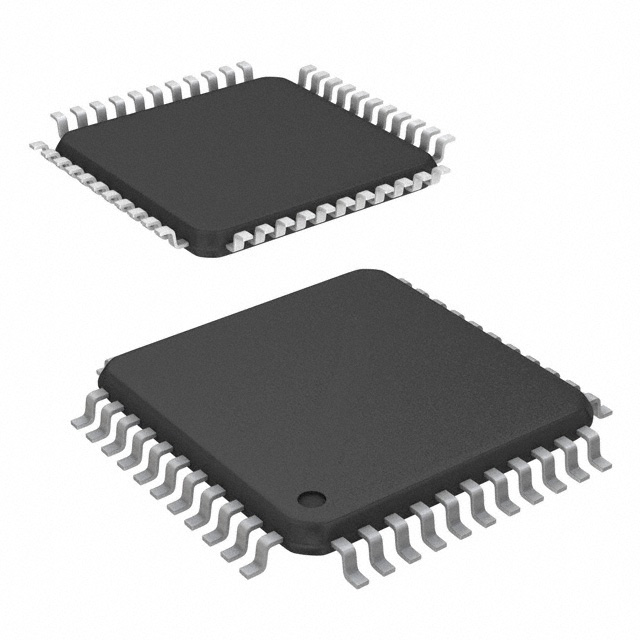

DSPIC33FJ64MC804-I/PT
ActiveMCU 16-BIT DSPIC33 DSPIC RISC 64KB FLASH 3V TO 3.6V 44-PIN TQFP TRAY
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ64MC804-I/PT
ActiveMCU 16-BIT DSPIC33 DSPIC RISC 64KB FLASH 3V TO 3.6V 44-PIN TQFP TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ64MC804-I/PT |
|---|---|
| Connectivity | IrDA, UART/USART, I2C, CANbus, SPI, LINbus |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | A/D 12b, A/D 9x10b, D/A 6x16b |
| Mounting Type | Surface Mount |
| Number of I/O | 35 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 44-TQFP |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 16 K |
| Speed | 40 MIPs |
| Supplier Device Package | 44-TQFP (10x10) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 6.21 | |
| Digikey | Tray | 1 | $ 7.25 | |
| 25 | $ 6.66 | |||
| 100 | $ 6.02 | |||
| Microchip Direct | TRAY | 1 | $ 7.25 | |
| 25 | $ 6.66 | |||
| 100 | $ 6.02 | |||
| 1000 | $ 5.53 | |||
| 5000 | $ 5.26 | |||
| Newark | Each | 1 | $ 7.54 | |
| 10 | $ 7.24 | |||
| 25 | $ 6.93 | |||
| 50 | $ 6.59 | |||
| 100 | $ 6.26 | |||
Description
General part information
dsPIC33FJ64MC804 Series
The dsPIC33F 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control. The devices are pin compatible with the PIC24HJ family of devices, and share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F,
dsPIC30F and dsPIC33F devices.
