DSPIC33FJ64MC804T-I/ML
ActiveDIGITAL SIGNAL CONTROLLER, DSPIC33F SERIES, 40 MHZ, 64 KB, 35 I/O'S, ECAN, I2C, SPI, UART, 3.3 V
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ64MC804T-I/ML
ActiveDIGITAL SIGNAL CONTROLLER, DSPIC33F SERIES, 40 MHZ, 64 KB, 35 I/O'S, ECAN, I2C, SPI, UART, 3.3 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ64MC804T-I/ML |
|---|---|
| Connectivity | IrDA, UART/USART, I2C, CANbus, SPI, LINbus |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | A/D 12b, A/D 9x10b, D/A 6x16b |
| Mounting Type | Surface Mount |
| Number of I/O | 35 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

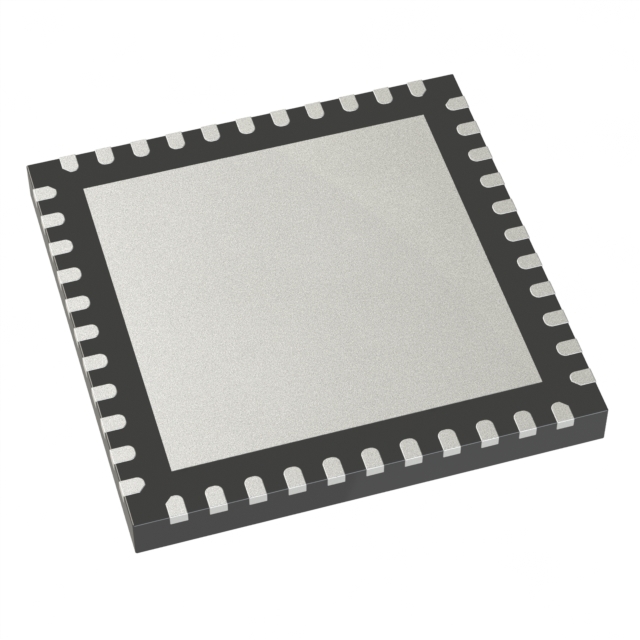

| Package / Case | 44-VQFN Exposed Pad |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 16 K |
| Speed | 40 MIPs |
| Supplier Device Package | 44-QFN (8x8) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1600 | $ 6.20 | |
| Microchip Direct | T/R | 1 | $ 7.48 | |
| 25 | $ 6.84 | |||
| 100 | $ 6.20 | |||
| 1000 | $ 5.71 | |||
| 5000 | $ 5.42 | |||
| Newark | Each (Supplied on Full Reel) | 100 | $ 6.39 | |
Description
General part information
dsPIC33FJ64MC804 Series
The dsPIC33F 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control. The devices are pin compatible with the PIC24HJ family of devices, and share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F,
dsPIC30F and dsPIC33F devices.
