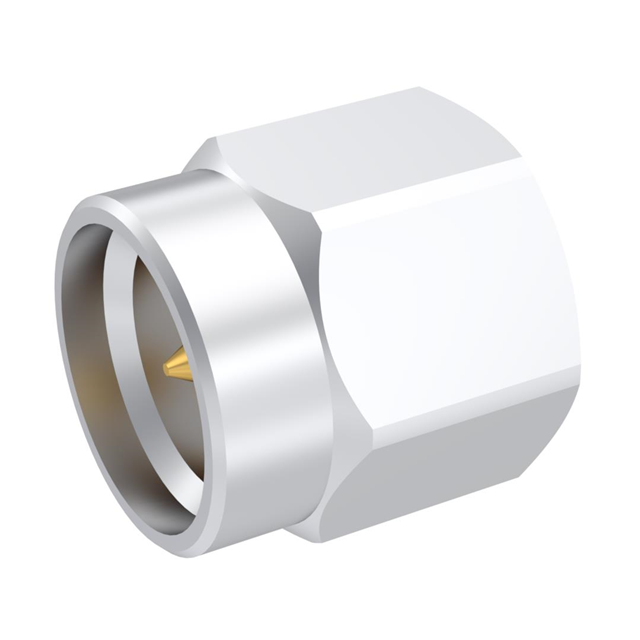

R404N01000

Active

Radiall USA, Inc.

TERM SMA M 18 GHZ 2W

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERM SMA M 18 GHZ 2W

Technical Specifications

Parameters and characteristics for this part

Specification	R404N01000

Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Dielectric Material	Mounting Type	Contact Finish	Features	Frequency - Max [Max]	Body Material	Connector Type	Contact Material	Connector Style	Impedance	Body Finish
Radiall USA, Inc. R404N01120	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Gold	Chain	18 GHz	Stainless Steel	Male Pin Plug	Brass	SMA	50 Ohms
Radiall USA, Inc. R404N08000	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Gold		26.5 GHz	Stainless Steel	Female Socket Jack	Beryllium Copper	SMA	50 Ohms	Gold
Radiall USA, Inc. R404N04000	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Gold		26.5 GHz	Stainless Steel	Female Socket Jack	Beryllium Copper	SMA	50 Ohms	Gold
Radiall USA, Inc. R404N07000	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Gold		26.5 GHz	Stainless Steel	Male Pin Plug	Brass	SMA	50 Ohms	Gold
Radiall USA, Inc. R404N02000	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Gold		18 GHz	Stainless Steel	Female Socket Jack	Beryllium Copper	SMA	50 Ohms	Gold
Radiall USA, Inc. R404N01121	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Gold	Cord	18 GHz	Stainless Steel	Male Pin Plug	Brass	SMA	50 Ohms
Radiall USA, Inc. R404N01000	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Gold		18 GHz	Stainless Steel	Male Pin Plug	Brass	SMA	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
