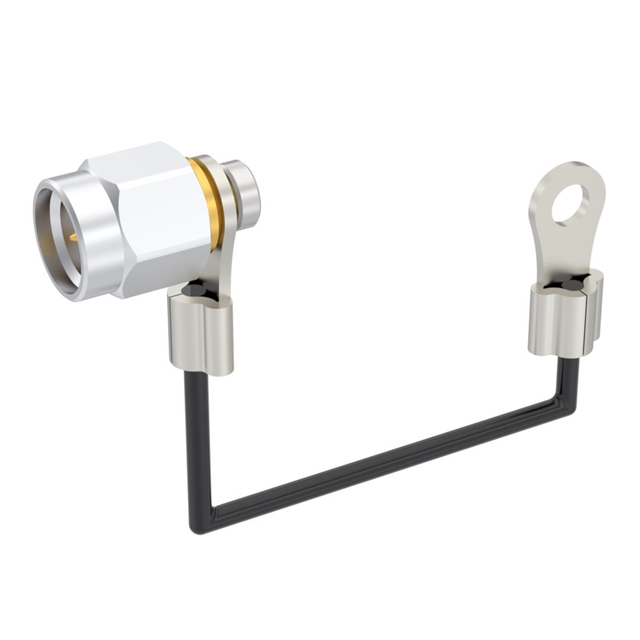

R404N01121
ActiveRadiall USA, Inc.
TERMINATION: SMA M 18 GHZ 2W WIT
Deep-Dive with AI
Search across all available documentation for this part.
R404N01121
ActiveRadiall USA, Inc.
TERMINATION: SMA M 18 GHZ 2W WIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R404N01121 |
|---|---|
| Body Material | Stainless Steel |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Brass |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Cord |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
R404N0 Series
| Part | Dielectric Material | Mounting Type | Contact Finish | Features | Frequency - Max [Max] | Body Material | Connector Type | Contact Material | Connector Style | Impedance | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Gold | Chain | 18 GHz | Stainless Steel | Male Pin Plug | Brass | SMA | 50 Ohms | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Gold | 26.5 GHz | Stainless Steel | Female Socket Jack | Beryllium Copper | SMA | 50 Ohms | Gold | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Gold | 26.5 GHz | Stainless Steel | Female Socket Jack | Beryllium Copper | SMA | 50 Ohms | Gold | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Gold | 26.5 GHz | Stainless Steel | Male Pin Plug | Brass | SMA | 50 Ohms | Gold | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Gold | 18 GHz | Stainless Steel | Female Socket Jack | Beryllium Copper | SMA | 50 Ohms | Gold | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Gold | Cord | 18 GHz | Stainless Steel | Male Pin Plug | Brass | SMA | 50 Ohms | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Gold | 18 GHz | Stainless Steel | Male Pin Plug | Brass | SMA | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.59 | |
| 10 | $ 34.25 | |||
Description
General part information
R404N0 Series
Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
Documents
Technical documentation and resources
No documents available
