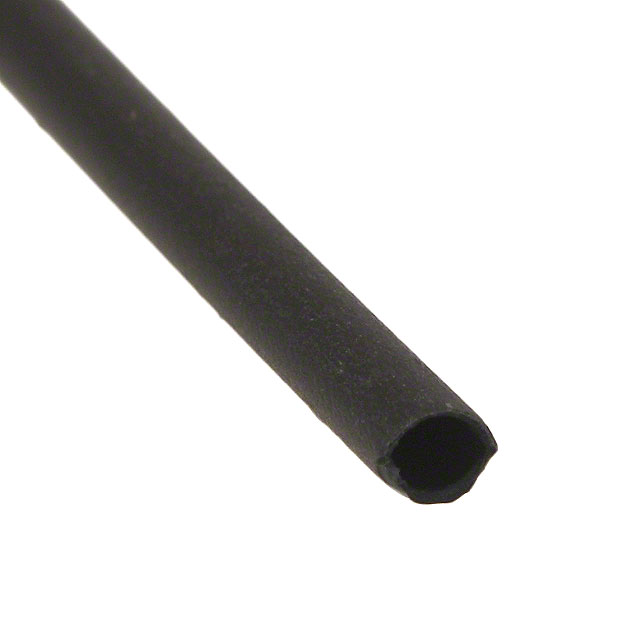

VFP-876 1/16"1000'RL

Unknown

3M (TC)

HEATSHRINK VFP876 1/16"X1000'BK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsVFP-876 Tubing Datasheet

VFP-876 1/16"1000'RL

Unknown

3M (TC)

HEATSHRINK VFP876 1/16"X1000'BK

Deep-Dive with AI

DocumentsVFP-876 Tubing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VFP-876 1/16"1000'RL

Color	Black
Features	Corrosion Resistant, Self Extinguishing, Flame Retardant
Inner Diameter - Recovered [diameter]	0.79 mm
Inner Diameter - Recovered [diameter]	0.031 in
Inner Diameter - Supplied [diameter]	0.063 in
Inner Diameter - Supplied [diameter]	1.6 mm
Length	3 ", 0.75 ", 6 ", 2 "
Length	76.2 mm, 7.6 m, 19.05 mm, 152.4 mm, 15.2 m, 304.8 m, 50.8 mm, 76.2 m, 1.52 m
Length	0.25 ft, 25 ft, 0.062 ', 50 ft, 1000 ft, 0.167 ', 3000 ", 5 '
Length	0.5 '
Length [x]	30.5 m
Length [x]	100 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.43 mm
Recovered Wall Thickness	0.017 in
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

VFP-876 Series

Part	Recovered Wall Thickness	Recovered Wall Thickness	Color	Length	Length	Length	Shrink Temperature	Shelf Life Start	Length	Material	Operating Temperature [Max]	Operating Temperature [Min]	Type	Length [x]	Length [x]	Shelf Life	Shrinkage Ratio	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Length [x]	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
3M (TC) VFP-876 1/16"1000'RL	0.43 mm	0.017 in	Black	0.75 " 2 " 3 " 6 "	1.52 m 7.6 m 15.2 m 19.05 mm 50.8 mm 76.2 mm 76.2 m 152.4 mm 304.8 m	0.062 ' 0.167 ' 0.25 ft 5 ' 25 ft 50 ft 1000 ft 3000 "	100 °C	Date of Manufacture	0.5 '	Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	30.5 m	100 ft	120 Months	2 to 1	27 °C 80 °F	10 °C	0.79 mm	0.031 in	0.063 in	1.6 mm	Corrosion Resistant Flame Retardant Self Extinguishing
3M (TC) VFP-876 1" 100'RL	0.89 mm	0.035 in	Black	1 in 3 " 6 "	1.52 m 7.6 m 15.2 m 25.4 mm 76.2 mm 152.4 mm	0.083 ft 0.25 ft 5 ' 25 ft 50 ft	100 °C	Date of Manufacture	0.5 '	Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	30.5 m 101.6 mm	0.333 ft 100 ft	120 Months	2 to 1	27 °C 80 °F	10 °C	12.7 mm	0.5 in	1 in	25.4 mm	Corrosion Resistant Flame Retardant Self Extinguishing	4 "
3M (TC) VFP-876-2-BLACK	1.14 mm	0.045 in	Black	6 "	152.4 mm		100 °C	Date of Manufacture	0.5 '	Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible			120 Months	2 to 1	27 °C 80 °F	10 °C	25.4 mm	1 in	2 in	50.8 mm	Corrosion Resistant Flame Retardant Self Extinguishing
3M (TC) VFP-876 3/16" 250'RL	0.51 mm	0.02 in	Black	0.75 " 1 in 1.5 " 3 "	1.52 m 7.6 m 15.2 m 19.05 mm 25.4 mm 38.1 mm 76.2 m 76.2 mm	0.062 ' 0.083 ft 0.125 ' 0.25 ft 5 ' 25 ft 50 ft 3000 "	100 °C	Date of Manufacture		Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	30.5 m 101.6 mm	0.333 ft 100 ft	120 Months	2 to 1	27 °C 80 °F	10 °C			0.187 in	4.75 mm	Corrosion Resistant Flame Retardant Self Extinguishing	4 "	2.36 mm	0.093 in
3M (TC) VFP-876 1/8" 500'RL	0.51 mm	0.02 in	Black	0.75 " 3 " 6 "	19.05 mm 76.2 mm 76.2 m 152.4 mm	0.062 ' 0.25 ft 3000 "	100 °C	Date of Manufacture	0.5 '	Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	30.5 m 101.6 mm	0.333 ft 100 ft	120 Months	2 to 1	27 °C 80 °F	10 °C	1.57 mm	0.062 in	0.125 "	3.18 mm	Corrosion Resistant Flame Retardant Self Extinguishing	4 "
3M (TC) VFP-876-1/4-WHITE-200'			White				100 °C	Date of Manufacture		Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	61 m	200 ft	120 Months	2 to 1	27 °C 80 °F	10 °C		0.125 in	0.25 in	6.35 mm	Corrosion Resistant Flame Retardant Self Extinguishing		3.18 mm		0.025 "	0.64 mm
3M (TC) VFP-876-1/2-48-BLACK			Black				100 °C	Date of Manufacture		Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	1.22 m	4 ft	120 Months	2 to 1	27 °C 80 °F	10 °C	6.35 mm	0.25 in	0.5 in	12.7 mm	Corrosion Resistant Flame Retardant Self Extinguishing				0.025 "	0.64 mm
3M (TC) VFP-876-1/4-BLACK			Black	6 "	152.4 mm		100 °C	Date of Manufacture	0.5 '	Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible			120 Months	2 to 1	27 °C 80 °F	10 °C		0.125 in	0.25 in	6.35 mm	Corrosion Resistant Flame Retardant Self Extinguishing		3.18 mm		0.025 "	0.64 mm
3M (TC) VFP-876-1/8-48-BLACK	0.51 mm	0.02 in	Black				100 °C	Date of Manufacture		Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	1.22 m	4 ft	120 Months	2 to 1	27 °C 80 °F	10 °C	1.57 mm	0.062 in	0.125 "	3.18 mm	Corrosion Resistant Flame Retardant Self Extinguishing
3M (TC) VFP-876 1/4" 200'RL			Black	0.75 " 2 " 3 " 6 "	19.05 mm 50.8 mm 76.2 mm 152.4 mm	0.062 ' 0.167 ' 0.25 ft	100 °C	Date of Manufacture	0.5 '	Polyolefin (PO)	135 °C	-55 °C	Tubing Flexible	30.5 m	100 ft	120 Months	2 to 1	27 °C 80 °F	10 °C		0.125 in	0.25 in	6.35 mm	Corrosion Resistant Flame Retardant Self Extinguishing		3.18 mm		0.025 "	0.64 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.24
		1	$ 9.38
		1	$ 30.98
		1	$ 17.12
		1	$ 3.16
		1	$ 65.23
		5	$ 2.60
		10	$ 2.42
		25	$ 2.36

Description

General part information

VFP-876 Series

Heat Shrink Tubing, Flexible 0.063" (1.60mm) 2 to 1 Black 1000.0' (304.8m)

Documents

Technical documentation and resources

VFP-876 Tubing

Datasheet
