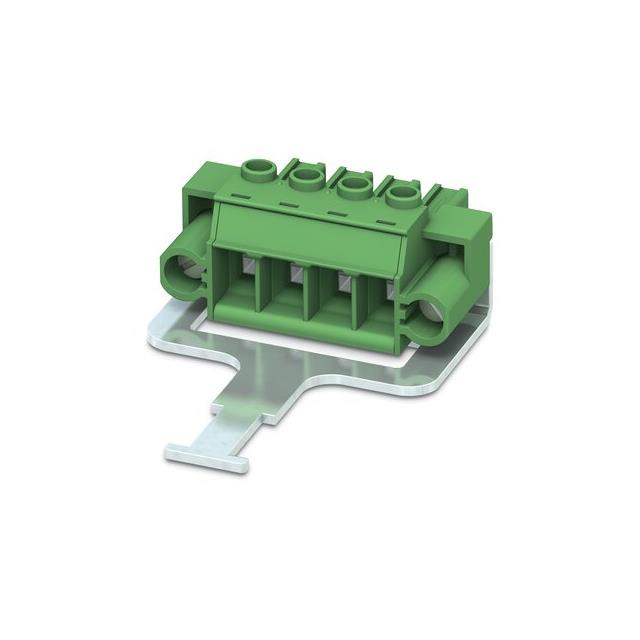

PLUGGABLE TERMINAL BLOCKS 7 POS 7.62MM PITCH PLUG 24-8 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1778201

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 7 POS 7.62MM PITCH PLUG 24-8 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1778201

Color	Green
Contact Mating Finish	Tin
Current - IEC	41 A
Current - UL	41 A
Features	Strain Relief, Mating Flange
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	7
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	7
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	7.1 Lb-In
Torque - Screw [Max]	0.8 Nm
Torque - Screw [Min]	0.7 Nm
Torque - Screw [Min]	6.2 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	1 kV
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm˛ [Max]	10 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛
Wire Strip Length	10 mm

PC Series

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw

Part	Current - IEC	Positions Per Level	Housing Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Type	Number of Positions	Color	Material Flammability Rating	Insulation Height	Insulation Height	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Voltage - IEC	Features	Pitch [x]	Pitch [x]	Number of Levels	Current - UL	Header Orientation	Contact Mating Finish	Insulation Height [z]	Insulation Height [z]	Contact Tail Length	Contact Tail Length	Termination Style	Wire Strip Length	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Screw Size
Phoenix Contact 1840133	20 A	8	Polyamide (PA) Nylon	20 AWG	14 AWG	Free Hanging (In-Line)	Plug Housing for Female Sockets	8	Green	UL94 V-0	17.2 mm	0.677 in	2.5 mm˛	0.5 mm˛	1 kV	Retention Latches	0.3 in	7.62 mm	1	10 A
Phoenix Contact 1913691	41 A	7	Polyamide (PA) Nylon			Through Hole	Header Male Pins Shrouded (4 Side)	7	Green	UL94 V-0					1 kV		0.4 in	10.16 mm	1	5 A	90° Right Angle	Silver	0.539 in	13.7 mm	0.157 in	4 mm	Solder
Phoenix Contact 1777794	41 A	9	Polyamide (PA) Nylon	24 AWG	8 AWG	Free Hanging (In-Line)	Plug Female Sockets	9	Green	UL94 V-0	19.7 mm	0.776 in			1 kV		0.3 in	7.62 mm	1	41 A		Tin					Screw - Rising Cage Clamp	10 mm	7.1 Lb-In	4.4 Lb-In	0.5 Nm	0.8 Nm	10 mm²	0.2 mm²	M3
Phoenix Contact 1778201	41 A	7	Polyamide (PA) Nylon	24 AWG	8 AWG	Free Hanging (In-Line)	Plug Female Sockets	7	Green	UL94 V-0			10 mm˛	0.2 mm˛	1 kV	Mating Flange Strain Relief	0.3 in	7.62 mm	1	41 A		Tin					Screw - Rising Cage Clamp	10 mm	7.1 Lb-In	6.2 Lb-In	0.7 Nm	0.8 Nm			M3
Phoenix Contact 1828317	20 A	9	Polyamide (PA) Nylon	30 AWG	10 AWG	Free Hanging (In-Line)	Plug Female Sockets	9	Green	UL94 V-0	18.1 mm	0.713 "			1 kV	Mating Flange	0.3 in	7.62 mm	1	5 A		Tin					Screw - Rising Cage Clamp	7 mm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	0.6 Nm	4 mm²	0.2 mm²	M3
