Technical Specifications
Parameters and characteristics for this part

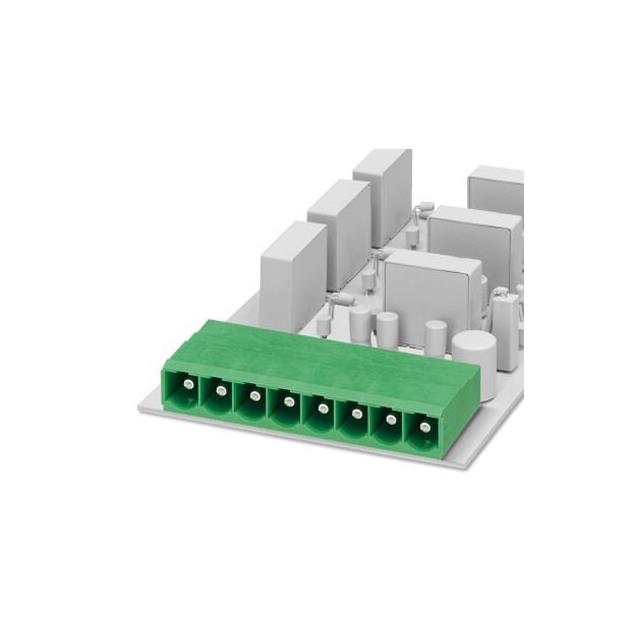

| Specification | 1913691 |
|---|---|
| Color | Green |
| Contact Mating Finish | Silver |
| Contact Tail Length | 0.157 in |
| Contact Tail Length | 4 mm |
| Current - IEC | 41 A |
| Current - UL | 5 A |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height [z] | 0.539 in |
| Insulation Height [z] | 13.7 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Pitch [x] | 10.16 mm |
| Pitch [x] | 0.4 in |
| Positions Per Level | 7 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 1 kV |
PC Series
Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw
| Part | Current - IEC | Positions Per Level | Housing Material | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Mounting Type | Type | Number of Positions | Color | Material Flammability Rating | Insulation Height | Insulation Height | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Voltage - IEC | Features | Pitch [x] | Pitch [x] | Number of Levels | Current - UL | Header Orientation | Contact Mating Finish | Insulation Height [z] | Insulation Height [z] | Contact Tail Length | Contact Tail Length | Termination Style | Wire Strip Length | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Screw Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | 20 A | 8 | Polyamide (PA) Nylon | 20 AWG | 14 AWG | Free Hanging (In-Line) | Plug Housing for Female Sockets | 8 | Green | UL94 V-0 | 17.2 mm | 0.677 in | 2.5 mm˛ | 0.5 mm˛ | 1 kV | Retention Latches | 0.3 in | 7.62 mm | 1 | 10 A | |||||||||||||||
Phoenix Contact | 41 A | 7 | Polyamide (PA) Nylon | Through Hole | Header Male Pins Shrouded (4 Side) | 7 | Green | UL94 V-0 | 1 kV | 0.4 in | 10.16 mm | 1 | 5 A | 90° Right Angle | Silver | 0.539 in | 13.7 mm | 0.157 in | 4 mm | Solder | |||||||||||||||
Phoenix Contact | 41 A | 9 | Polyamide (PA) Nylon | 24 AWG | 8 AWG | Free Hanging (In-Line) | Plug Female Sockets | 9 | Green | UL94 V-0 | 19.7 mm | 0.776 in | 1 kV | 0.3 in | 7.62 mm | 1 | 41 A | Tin | Screw - Rising Cage Clamp | 10 mm | 7.1 Lb-In | 4.4 Lb-In | 0.5 Nm | 0.8 Nm | 10 mm² | 0.2 mm² | M3 | ||||||||
Phoenix Contact | 41 A | 7 | Polyamide (PA) Nylon | 24 AWG | 8 AWG | Free Hanging (In-Line) | Plug Female Sockets | 7 | Green | UL94 V-0 | 10 mm˛ | 0.2 mm˛ | 1 kV | Mating Flange Strain Relief | 0.3 in | 7.62 mm | 1 | 41 A | Tin | Screw - Rising Cage Clamp | 10 mm | 7.1 Lb-In | 6.2 Lb-In | 0.7 Nm | 0.8 Nm | M3 | |||||||||
Phoenix Contact | 20 A | 9 | Polyamide (PA) Nylon | 30 AWG | 10 AWG | Free Hanging (In-Line) | Plug Female Sockets | 9 | Green | UL94 V-0 | 18.1 mm | 0.713 " | 1 kV | Mating Flange | 0.3 in | 7.62 mm | 1 | 5 A | Tin | Screw - Rising Cage Clamp | 7 mm | 5.3 Lb-In | 4.4 Lb-In | 0.5 Nm | 0.6 Nm | 4 mm² | 0.2 mm² | M3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PC Series
Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw
