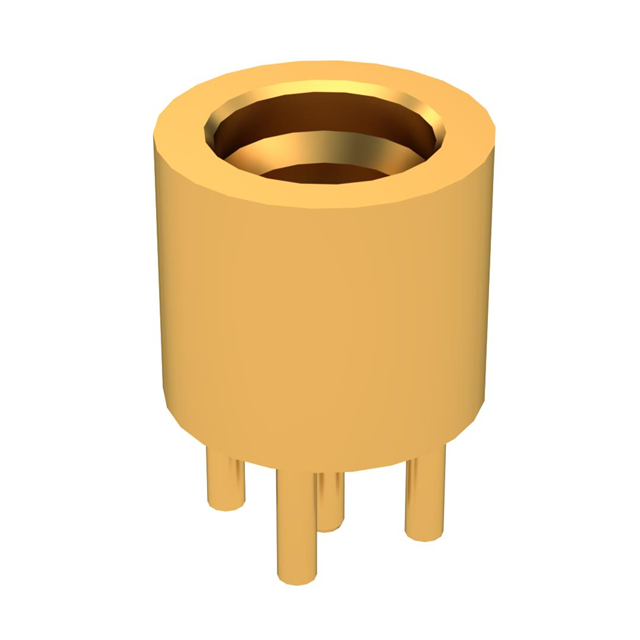

R222426300
ActiveRadiall USA, Inc.
SMP M STR PCB LD C100
Deep-Dive with AI
Search across all available documentation for this part.
R222426300
ActiveRadiall USA, Inc.
SMP M STR PCB LD C100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R222426300 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Limited Detent |
| Frequency - Max [Max] | 12 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.75 | |
| 10 | $ 20.63 | |||
| 25 | $ 18.69 | |||
| 50 | $ 17.37 | |||
| 100 | $ 16.18 | |||
| 250 | $ 14.78 | |||
| 500 | $ 13.83 | |||
Description
General part information
R22242 Series
SMP Connector Receptacle, Male Pin 50 Ohms Panel Mount, Through Hole Solder
