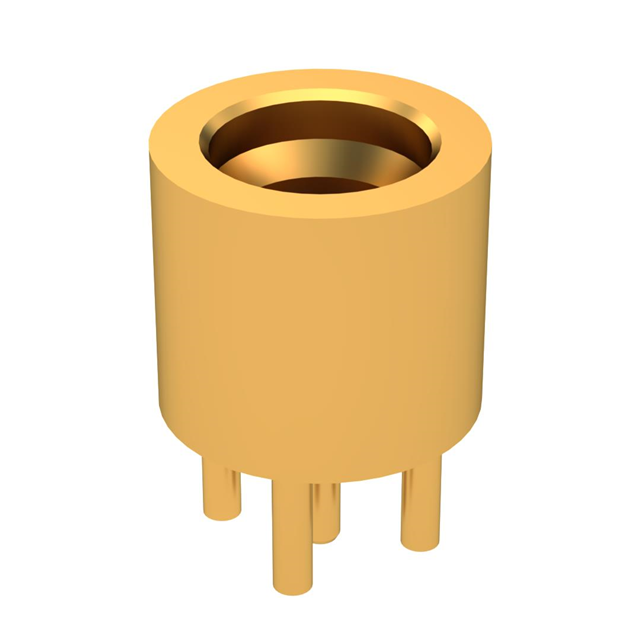

R222426000
ActiveRadiall USA, Inc.
RF CONNECTOR, 1 CONTACT(S), MALE, BOARD MOUNT, SOLDER TERMINAL, PLUG,
Deep-Dive with AI
Search across all available documentation for this part.
R222426000
ActiveRadiall USA, Inc.
RF CONNECTOR, 1 CONTACT(S), MALE, BOARD MOUNT, SOLDER TERMINAL, PLUG,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R222426000 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 12 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.05 | |
| 10 | $ 17.56 | |||
| 25 | $ 16.80 | |||
| 50 | $ 16.26 | |||
| 100 | $ 15.71 | |||
| 300 | $ 14.85 | |||
| 500 | $ 14.41 | |||
Description
General part information
R22242 Series
SMP Connector Receptacle, Male Pin 50 Ohms Panel Mount, Through Hole Solder
