VS5V0BL1QST18R
ActiveRohm Semiconductor
RASMID™ SERIES - TRANSIENT VOLTAGE SUPPRESSOR
Deep-Dive with AI
Search across all available documentation for this part.
VS5V0BL1QST18R
ActiveRohm Semiconductor
RASMID™ SERIES - TRANSIENT VOLTAGE SUPPRESSOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VS5V0BL1QST18R |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 1.8 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, No Lead |
| Power - Peak Pulse | 30.6 W |
| Power Line Protection | False |

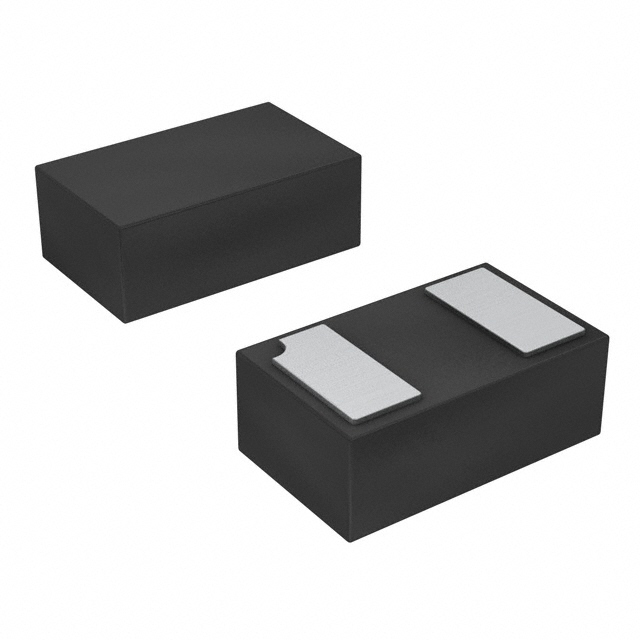

| Supplier Device Package | SMD1006 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 7 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 17 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.11 | |||
| 5000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.11 | |||
| 5000 | $ 0.09 | |||
| Tape & Reel (TR) | 18000 | $ 0.08 | ||
| 36000 | $ 0.07 | |||
| 54000 | $ 0.07 | |||
| 90000 | $ 0.07 | |||
| 126000 | $ 0.07 | |||
Description
General part information
VS5V0BL1QS Series
VS5V0BB1FS is the TVS diode which is ideal for I/F protection in electronic devices and 01005(0402)-size. Low clamping voltage and high surge resistance provide superior protection.
