VS5V0BN1HST15R

Active

Rohm Semiconductor

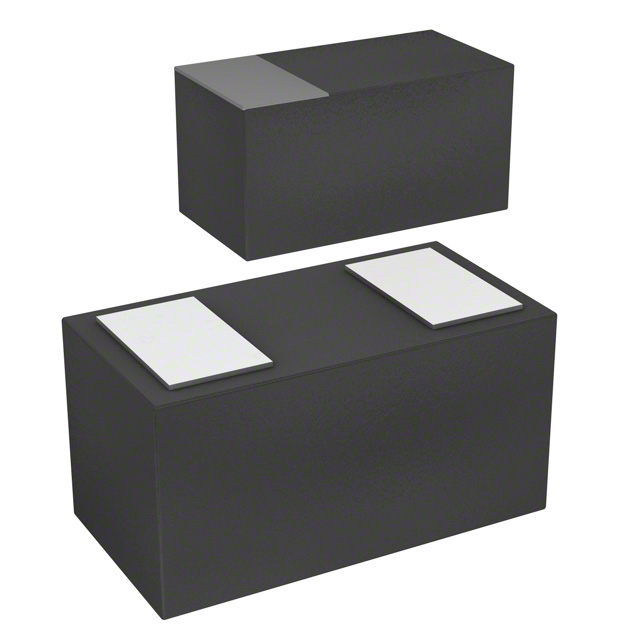

TVS DIODE, 36W, 5V, BIDIR, 0603 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

VS5V0BN1HST15R

Active

Rohm Semiconductor

TVS DIODE, 36W, 5V, BIDIR, 0603 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VS5V0BN1HST15R

Applications	General Purpose
Bidirectional Channels [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 Metric
Package / Case	0201
Power - Peak Pulse	36 W
Power Line Protection	False
Supplier Device Package	SOD-962, SMD0603, DSN0603-2
Type	Zener
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	18 V
Voltage - Reverse Standoff (Typ)	5 V

VS5V0BL1QS Series

RASMID™ Series - Transient Voltage Suppressor

Part	Package / Case	Package / Case	Applications	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Type	Voltage - Reverse Standoff (Typ)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)
Rohm Semiconductor VS5V0BN1HST15R	0603 Metric	0201	General Purpose	DSN0603-2 SMD0603 SOD-962	6 V	36 W	Zener	5 V	Surface Mount	-55 °C	150 °C	18 V	1
Rohm Semiconductor VS5V0BB1FST27N		2-SMD No Lead	General Purpose	SMD0402	5.3 V	45 W	Zener	5 V	Surface Mount	-55 °C	150 °C	9.5 V	1	4.75 A
Rohm Semiconductor VS5V0BL1QST18R		2-SMD No Lead	General Purpose	SMD1006	7 V	30.6 W	Zener	5 V	Surface Mount	-55 °C	150 °C	17 V	1	1.8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.29
		10	$ 0.18
		100	$ 0.11
		500	$ 0.08
		1000	$ 0.07
		2000	$ 0.06
		5000	$ 0.06
	Digi-Reel®	1	$ 0.29
		10	$ 0.18
		100	$ 0.11
		500	$ 0.08
		1000	$ 0.07
		2000	$ 0.06
		5000	$ 0.06
	Tape & Reel (TR)	15000	$ 0.04
Newark	Each	1	$ 0.06

Description

General part information

VS5V0BL1QS Series

VS5V0BB1FS is the TVS diode which is ideal for I/F protection in electronic devices and 01005(0402)-size. Low clamping voltage and high surge resistance provide superior protection.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
