Technical Specifications
Parameters and characteristics for this part
| Specification | STK682-010-E |
|---|---|
| Applications | General Purpose |
| Current - Output | 3 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 19-SSIP Formed Leads |
| Step Resolution [Max] | 0.0078125 |
| Step Resolution [Min] | 1 |
| Supplier Device Package | 19-SIP |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 32 V |
| Voltage - Load [Min] | 9 V |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STK682-010-E Series

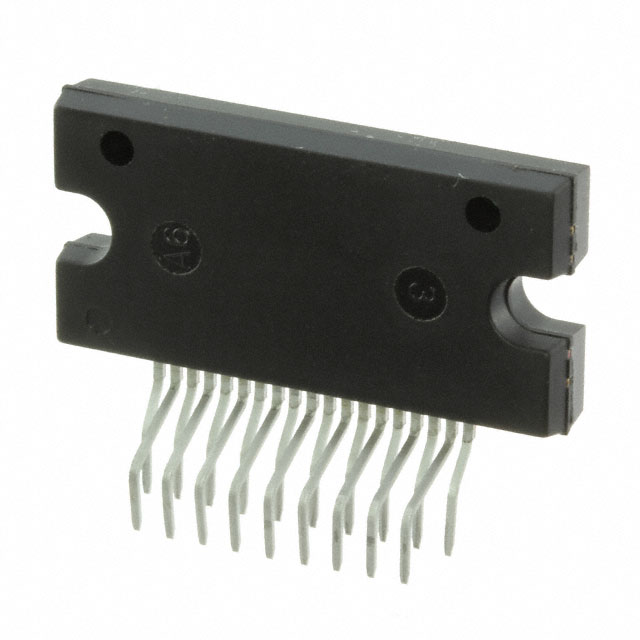

STK682-010-E is a stepping motor driver hybrid IC that built in ultra micro stepping controller to 1/128 step and is based on a bipolar constant-current PWM system. They support application simplification and standardization by providing a built-in 4 phase distribution stepping motor controller.
