STK682-010GEVB

Obsolete

ON Semiconductor

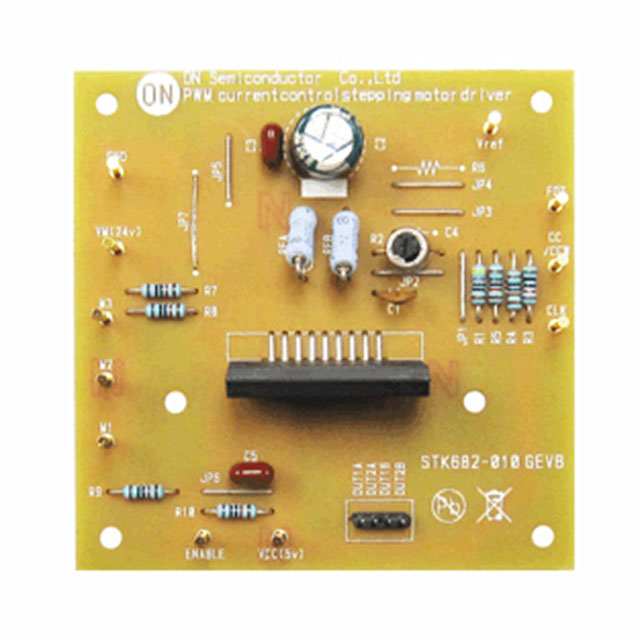

EVAL BOARD STK682-010G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STK682-010GEVB

Obsolete

ON Semiconductor

EVAL BOARD STK682-010G

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK682-010GEVB

Function	Motor Controller/Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	STK682-010-E

STK682-010-E Series

Bipolar Ultra-micro Stepping Motor Driver

Part	Interface	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Step Resolution [Max]	Step Resolution [Min]	Supplier Device Package	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Applications	Current - Output	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Motor Type - Stepper	Output Configuration	Utilized IC / Part	Supplied Contents	Type
ON Semiconductor STK682-010-E	Parallel	Driver - Fully Integrated Control and Power Stage	0 V	5 V	Power MOSFET	0.0078125	1	19-SIP	19-SSIP Formed Leads	32 V	9 V	General Purpose	3 A	Through Hole	105 °C	-20 °C	Bipolar	Half Bridge (4)
ON Semiconductor STK682-010GEVB		Motor Controller/Driver																	STK682-010-E	Board(s)	Power Management

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK682-010-E Series

STK682-010-E is a stepping motor driver hybrid IC that built in ultra micro stepping controller to 1/128 step and is based on a bipolar constant-current PWM system. They support application simplification and standardization by providing a built-in 4 phase distribution stepping motor controller.
