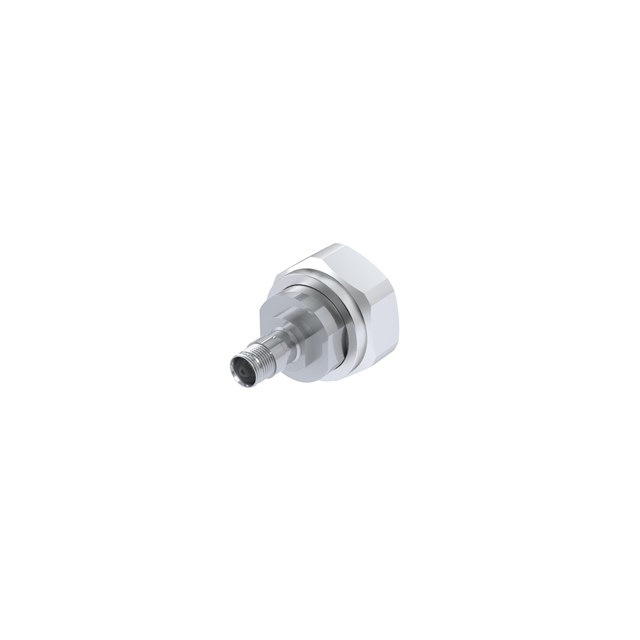

RF CONNECTOR ADAPTER, NEX10-7/16, FEMALE-MALE,

Deep-Dive with AI

Search across all available documentation for this part.

R191620017

Active

Radiall USA, Inc.

RF CONNECTOR ADAPTER, NEX10-7/16, FEMALE-MALE,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R191620017

Adapter Series	NEX10, 7/16
Adapter Type	Plug to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	7/16 Plug, Male Pin
Convert To (Adapter End)	NEX10 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

R19162 Series

Part	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Style	Convert From (Adapter End)	Adapter Type	Mounting Type	Center Contact Material	Frequency - Max [Max]	Center Gender	Adapter Series	Center Contact Plating	Body Material	Conversion Type	Convert To (Adapter End)	Impedance	Fastening Type	Adapter Series [Max]	Adapter Series [Min]
Radiall USA, Inc. R191620037	Polytetrafluoroethylene (PTFE)	90 °C	-55 °C	Straight	4.3/10 Jack Female Socket	Jack to Jack	Free Hanging (In-Line)	Beryllium Copper	6000 MHz	Female to Female	4.3/10 to NEX10	Silver	Brass	Between Series	Female Socket NEX10 Jack	50 Ohms
Radiall USA, Inc. R191621017	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Jack Female Socket	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	20 GHz		NEX10 to SMA	Gold	Brass	Between Series	Male Pin SMA Plug	50 Ohms	Snap-On Threaded
Radiall USA, Inc. R191620007	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Plug Male Pin	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	11 GHz			Silver	Brass	Between Series	Female Socket N Jack	50 Ohms	Push-Pull Threaded	N	NEX10
Radiall USA, Inc. R191621007	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Plug Male Pin	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	20 GHz		NEX10 to SMA	Gold	Brass	Between Series	Female Socket SMA Jack	50 Ohms	Snap-On Threaded
Radiall USA, Inc. R191620027	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Jack Female Socket	Jack to Jack	Free Hanging (In-Line)	Beryllium Copper	11 GHz	Female to Female		Silver	Brass	Between Series	Female Socket N Jack	50 Ohms		N	NEX10
Radiall USA, Inc. R191620017	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	7/16 Plug Male Pin	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	6000 MHz		7/16 NEX10	Silver	Brass	Between Series	Female Socket NEX10 Jack	50 Ohms	Snap-On Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.80

Description

General part information

R19162 Series

Adapter Coaxial Connector 7/16 Plug, Male Pin To NEX10 Jack, Female Socket 50 Ohms
